Throttle Position Sensor

Reconnect all harness connectors disconnected.
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Turn ignition switch ON.
Set selector lever to D position.

Check voltage between ECM terminals 50 (TP sensor 1signal), 69 (TP sensor 2signal) and body ground under the following conditions.

ACCELERATOR PEDAL POSITION

Terminal	Accelerator pedal	Voltage
50 (Throttle position sensor 1)	Fully released	More than 0.36V
	Fully depressed	Less than 4.75V
69 (Throttle position sensor 2)	Fully released	Less than 4.75V
	Fully depressed	More than 0.36V

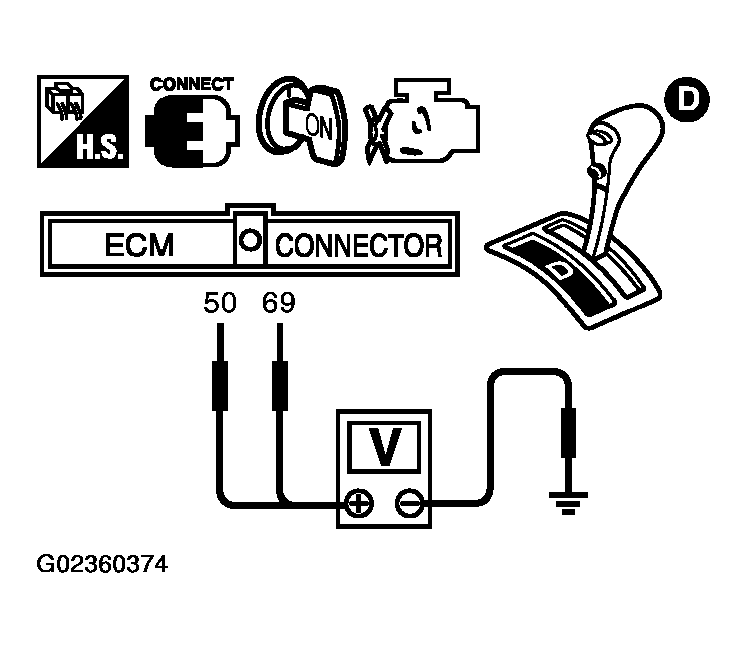

Fig 1: Checking Voltage Between ECM Terminals 50 (TP Sensor 1Signal), 69 (TP Sensor 2Signal) And Body Ground

G02360374

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace electric throttle control actuator and go to the next step.
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Perform "IDLE AIR VOLUME LEARNING ".
