With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

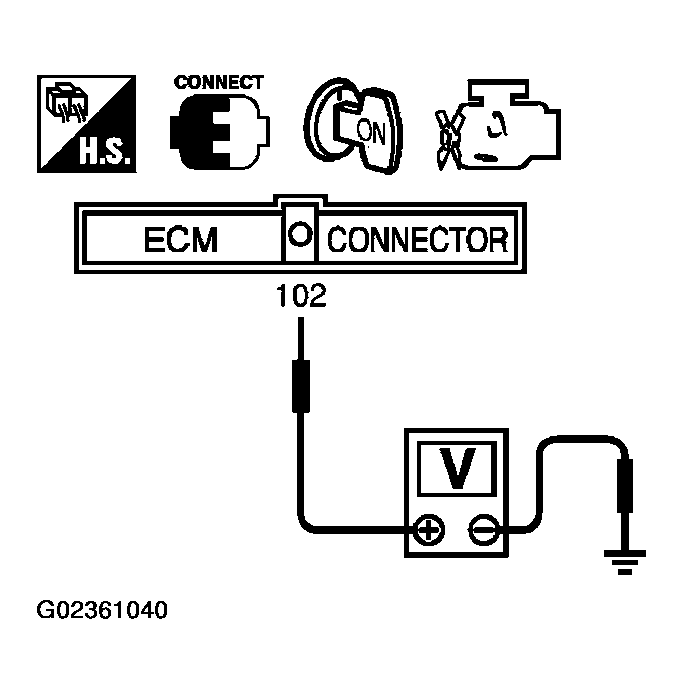

    Fig 1: Checking Voltage Between ECM Terminal 102 (PNP Switch Signal) And Ground
    G02361040Courtesy of NISSAN MOTOR CO., U.S.A.
    VOLTAGE BETWEEN TERMINALS CHART

    Condition (Gear position) Voltage V (Known-good data)
    P or N position Approx. 0
    Except above position BATTERY VOLTAGE (11 - 14V)
  3. If NG, go to "DIAGNOSTIC PROCEDURE  ".
