Summary Chart: Notes

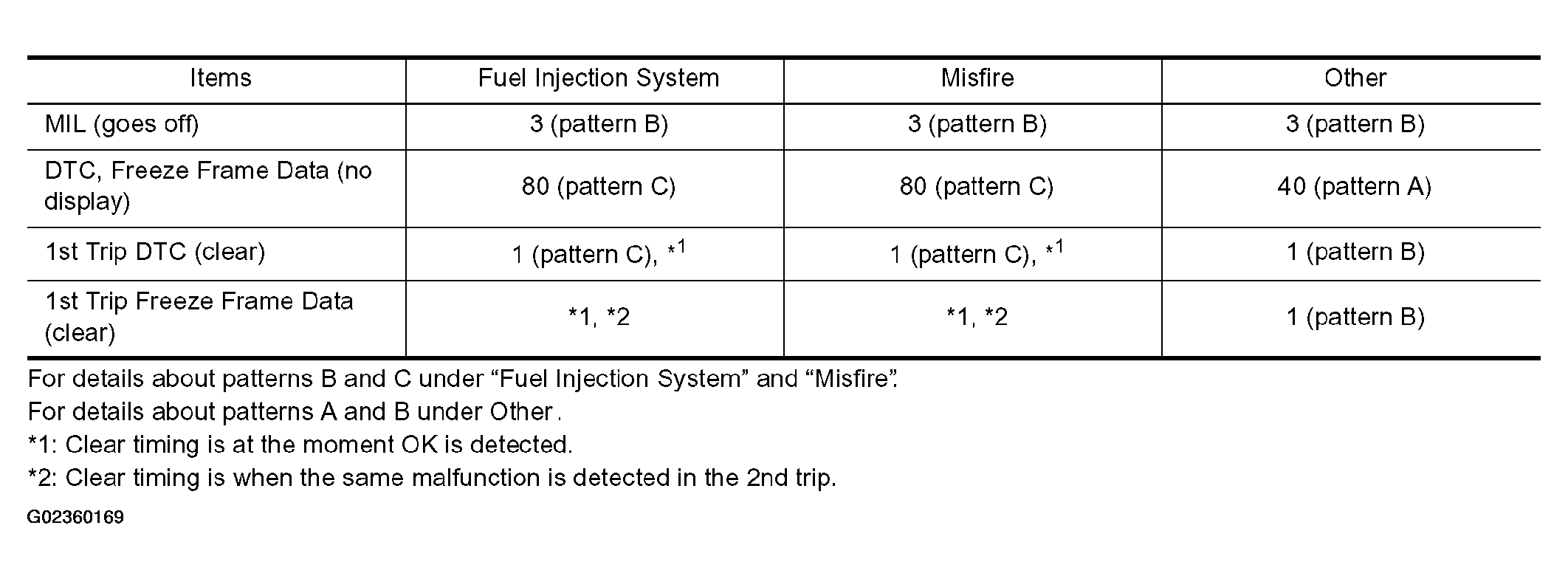

Fig 1: Summary Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS FOR "MISFIRE" < EXHAUST QUALITY DETERIORATION >, "FUEL INJECTION SYSTEM"

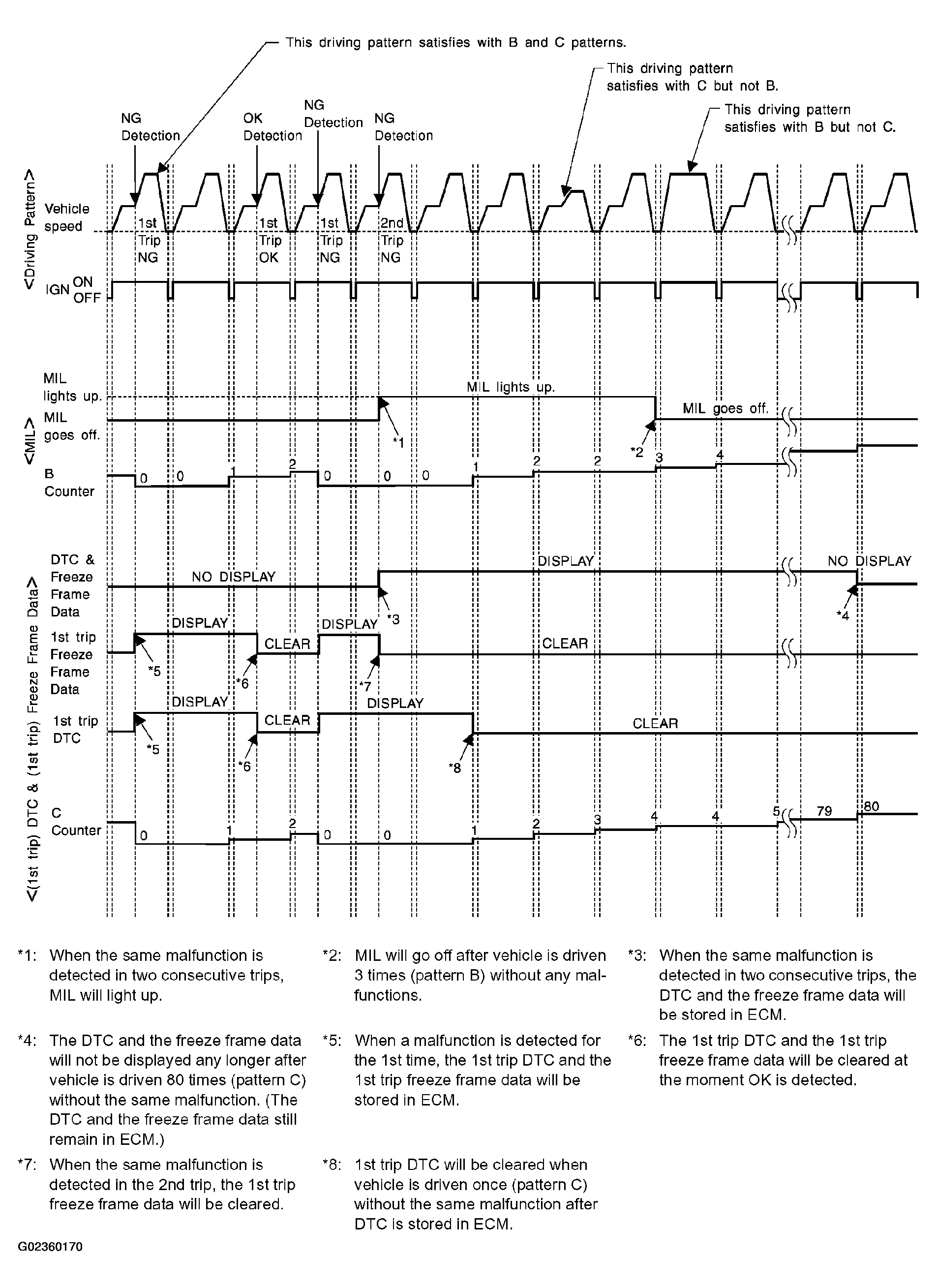

Fig 2: Identifying Driving Patterns (1St Trip DTC)

Courtesy of NISSAN MOTOR CO., U.S.A.

EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION >", "FUEL INJECTION SYSTEM"
