With CONSULT-II

  1. Turn ignition switch ON.
  2. Perform "FUEL PRESSURE RELEASE  " in "WORK SUPPORT" mode with CONSULT-II.
  3. Start engine.
  4. After engine stalls, crank it two or three times to release all fuel pressure.
  5. Turn ignition switch OFF.

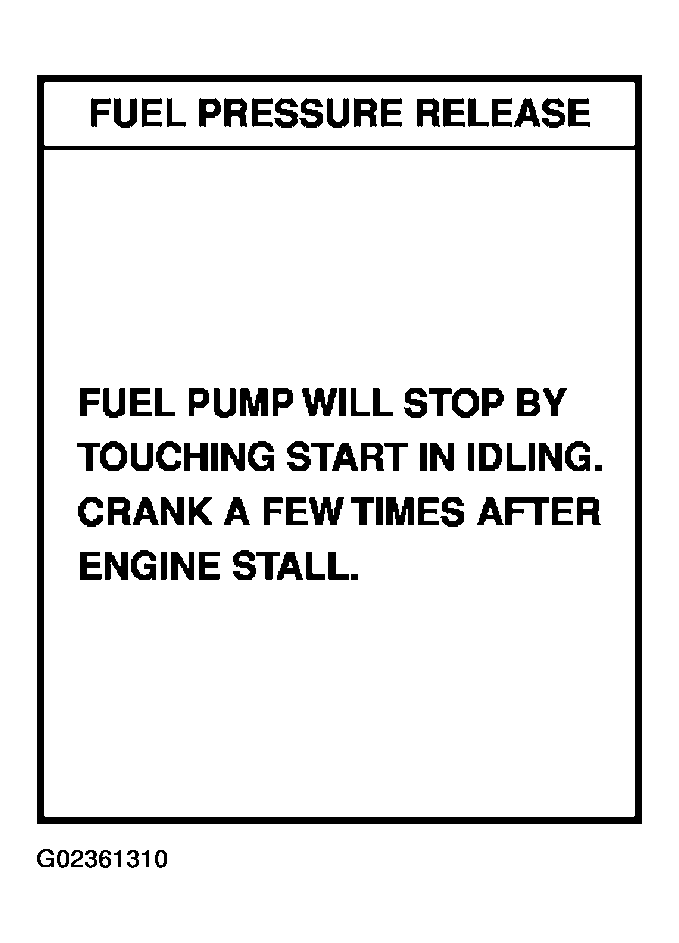

    Fig 1: Identifying CONSULT-II Display Screen Fuel Pressure Release
    G02361310Courtesy of NISSAN MOTOR CO., U.S.A.
