With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Wait at least 5 seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE  ". If DTC is not detected, go to next step.
  5. Start engine and wait at least 5 seconds.
  6. If DTC is detected, go to "DIAGNOSTIC PROCEDURE  ".

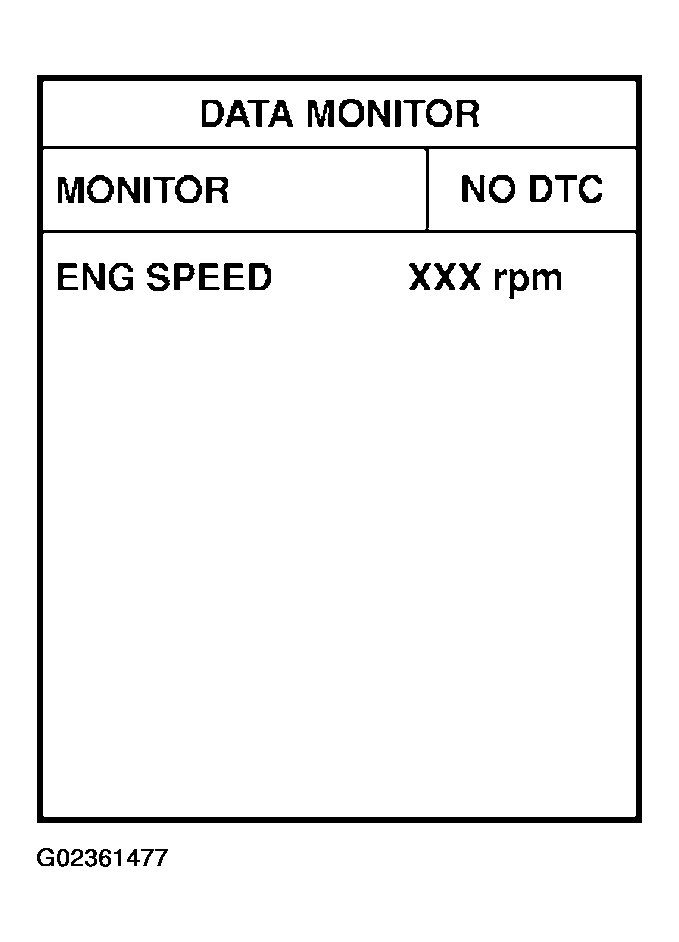

    Fig 1: Identifying Consult-II Data Monitor
    G02361477Courtesy of NISSAN MOTOR CO., U.S.A.
