Fuel Tank Temperature Sensor
- Remove fuel level sensor unit.

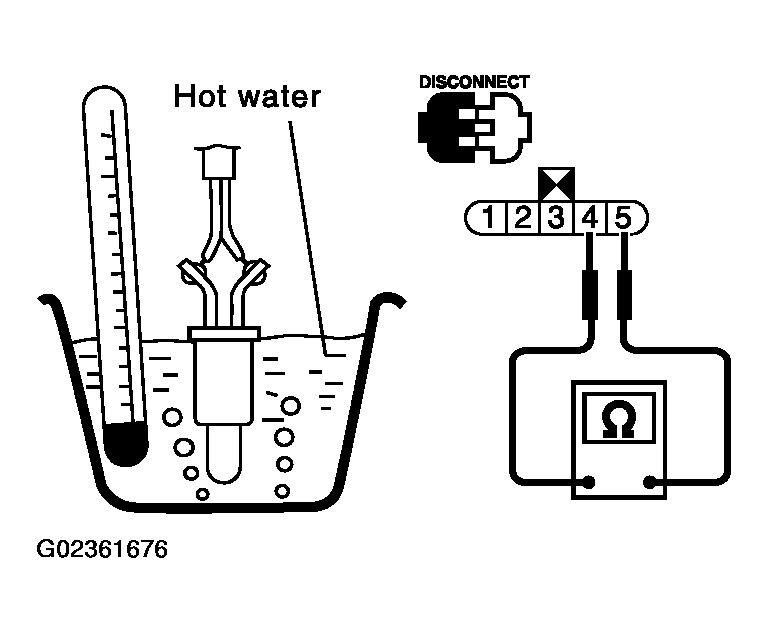

- Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.
TEMPERATURE REFERENCE
| Temperature °C (°F) |
Resistance kohm |
| 20 (68) |
2.3-2.7 |
| 50(122) |
0.79 - 0.90 |
Courtesy of NISSAN MOTOR CO., U.S.A.
