With CONSULT-II

  1. Turn ignition switch OFF and wait at least 10 seconds.
  2. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and wait at least 40 seconds.
    NOTE: Do not depress accelerator pedal even slightly.

    If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE  ".

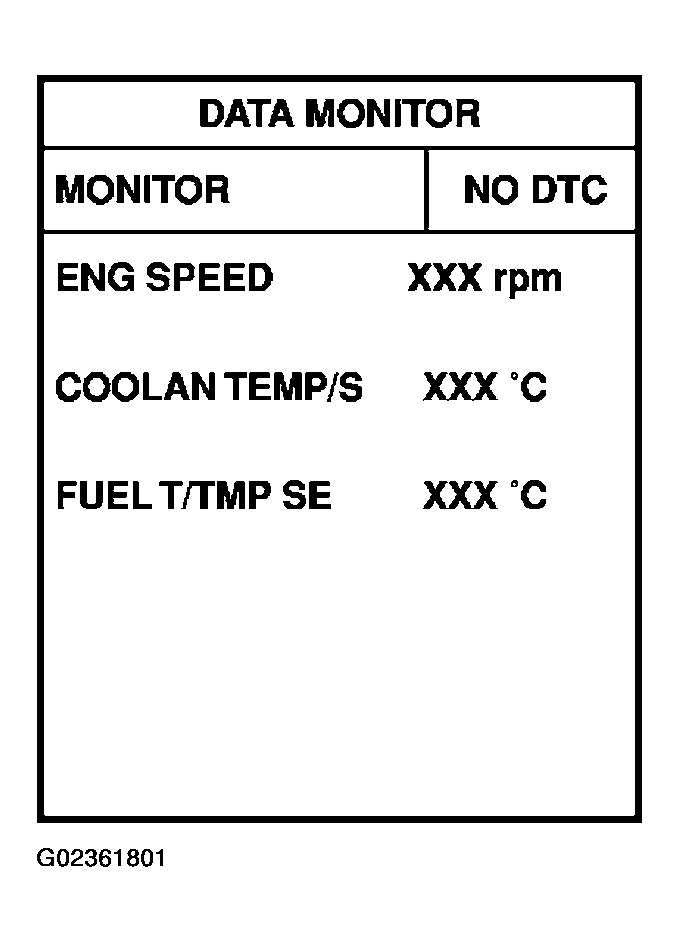

    Fig 1: Displaying Data Monitor
    G02361801Courtesy of NISSAN MOTOR CO., U.S.A.
