With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Press MAIN switch on ICC steering switch.
  4. Drive the vehicle at more than 40 km/h (25 MPH).
  5. Press SET/COAST switch.
  6. If DTC is detected, go to "DIAGNOSTIC PROCEDURE  ".

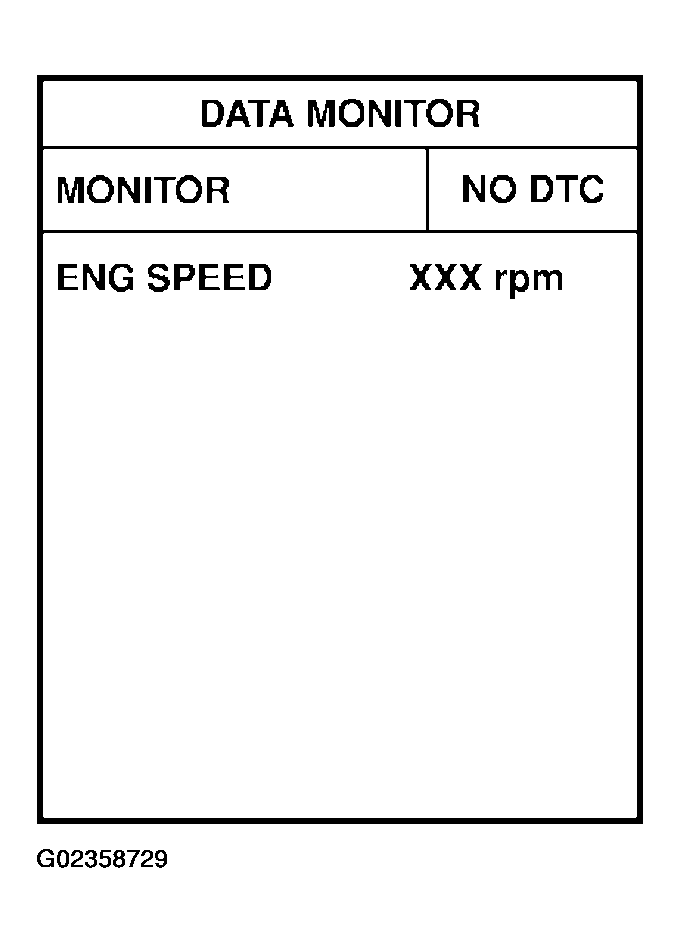

    Fig 1: Displaying Data Monitor
    G02358729Courtesy of NISSAN MOTOR CO., U.S.A.
