With Consult-II

  1. Start engine (VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Drive the vehicle at more than 40 km/h (25 MPH).
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE  ".

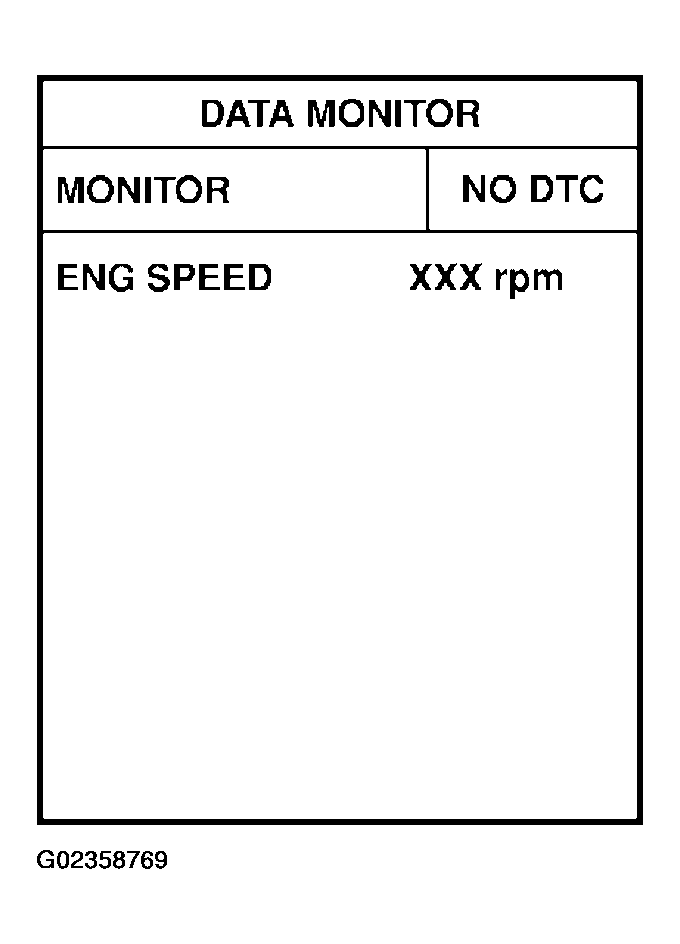

    Fig 1: Displaying Data Monitor
    G02358769Courtesy of NISSAN MOTOR CO., U.S.A.
