Test Item

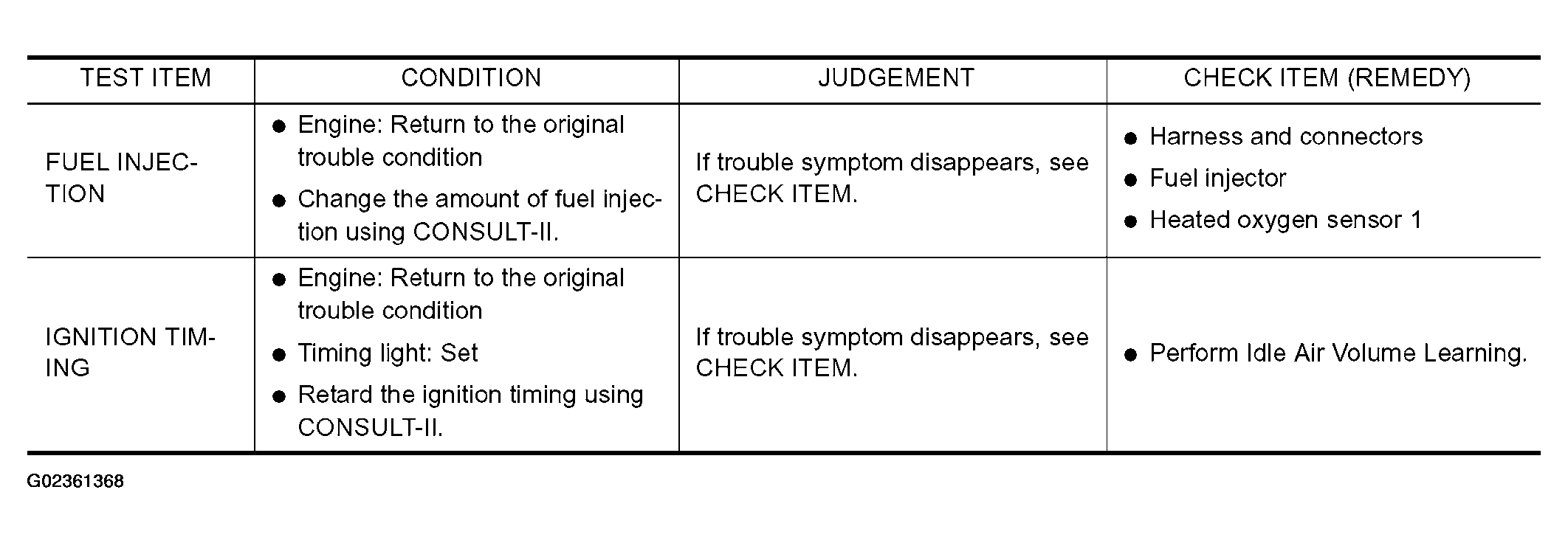

Fig 1: Active Test Mode Description (1 Of 2)
G02361368Courtesy of NISSAN MOTOR CO., U.S.A.

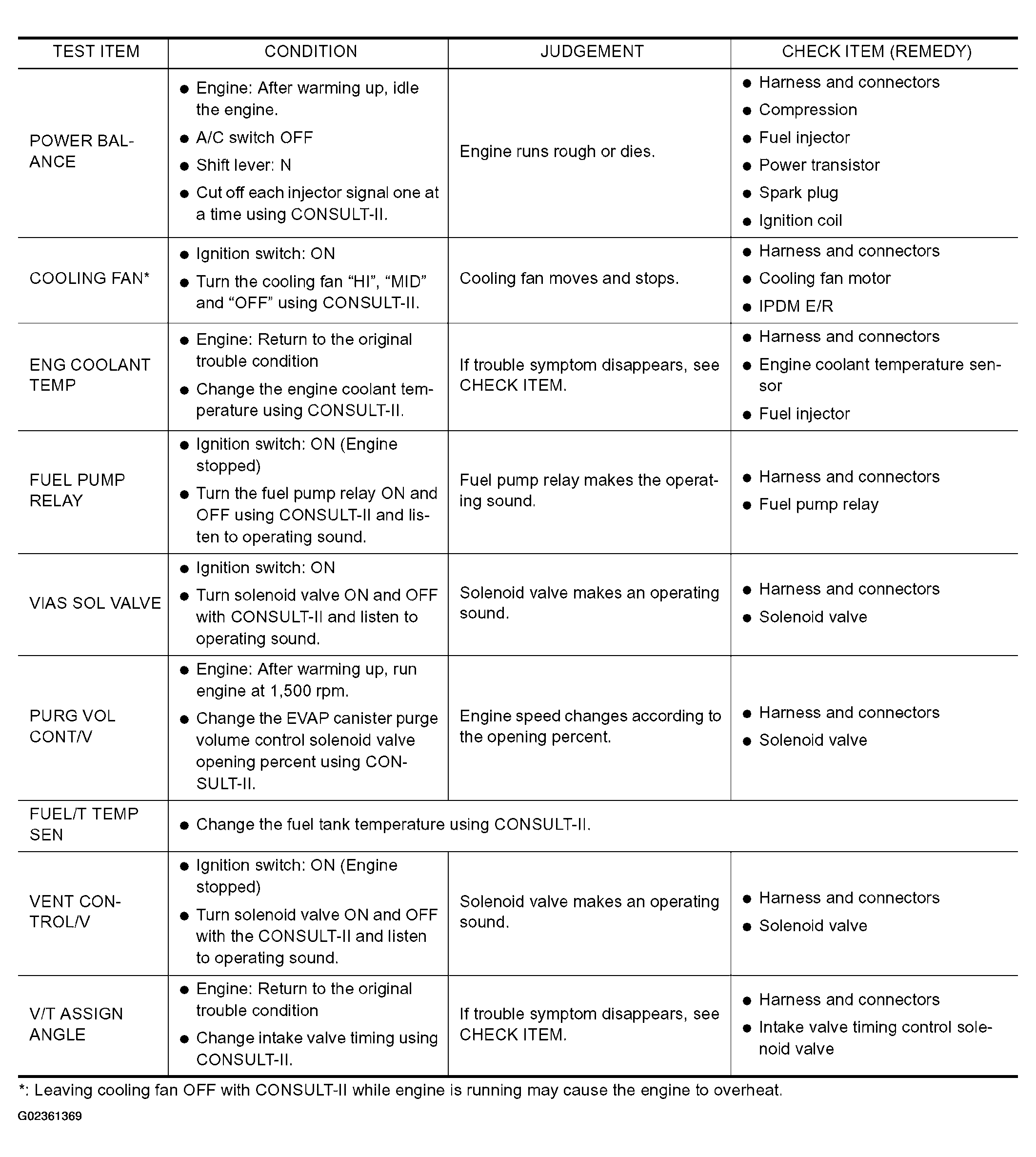

Fig 2: Active Test Mode Description (2 Of 2)
G02361369Courtesy of NISSAN MOTOR CO., U.S.A.
