Monitored Item

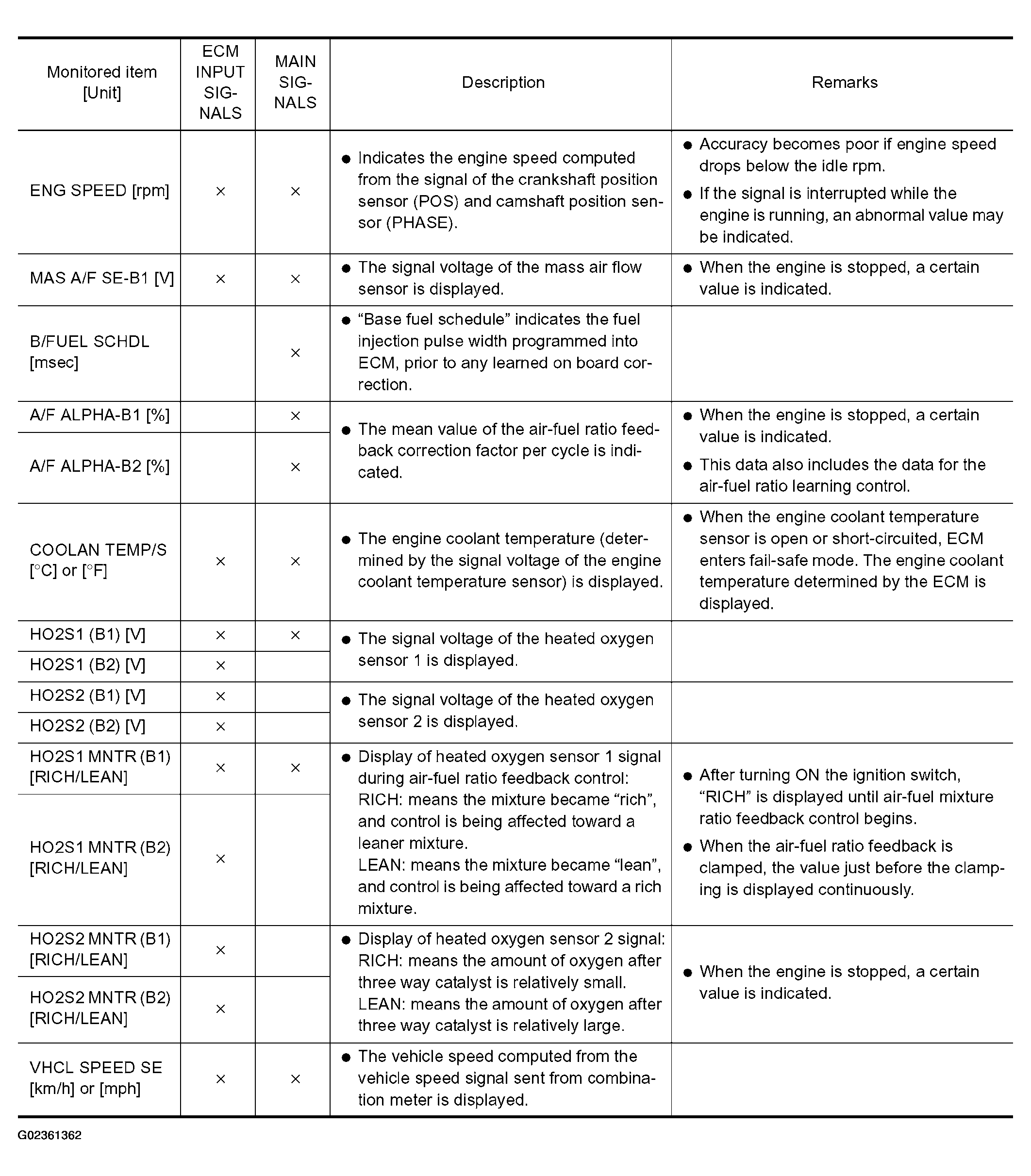

Fig 1: Data Monitor Mode Description Chart (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Data Monitor Mode Description Chart (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Data Monitor Mode Description Chart (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Data Monitor Mode Description Chart (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Data Monitor Mode Description Chart (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
