Front Suspension Assembly: Components

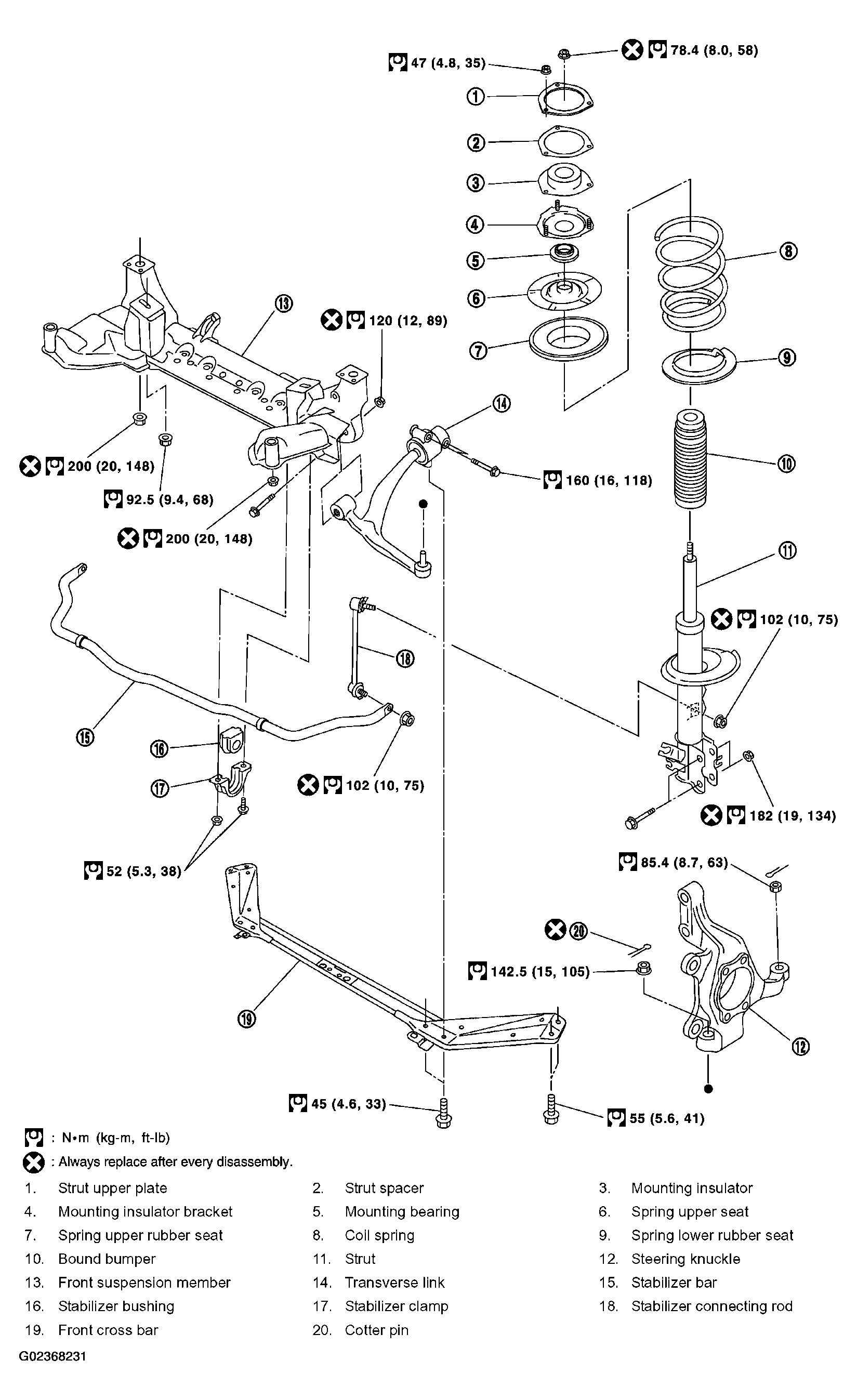

Fig 1: Exploded View Of Front Suspension With Torque Specifications
G02368231Courtesy of NISSAN MOTOR CO., U.S.A.
