Diagnostic Procedure

CHECK DTC
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select "SELF DIAG RESULTS" mode for "A/T" with CONSULT-II.
3. Touch "ERASE".
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Perform "DTC confirmation procedure", "DTC CONFIRMATION PROCEDURE ".

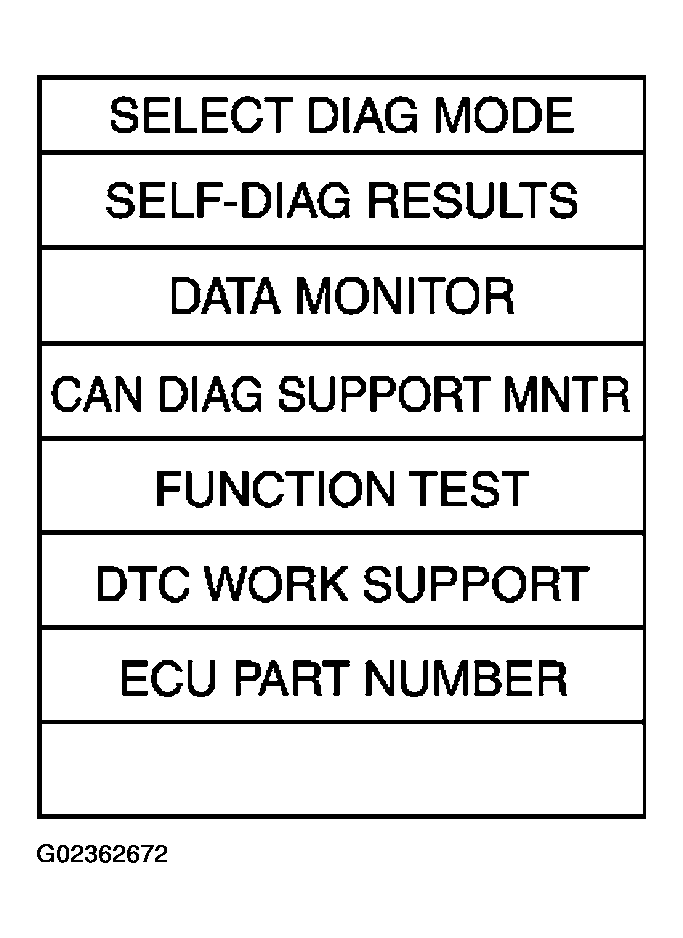

  Fig 1: Identifying Display - Select System
  Courtesy of NISSAN MOTOR CO., U.S.A.
Is the "TCM.ROM" displayed again?
1. YES: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
2. NO: INSPECTION END
