Removal and Installation: Removal

  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device assembly and remove interlock rod from adjuster holder.

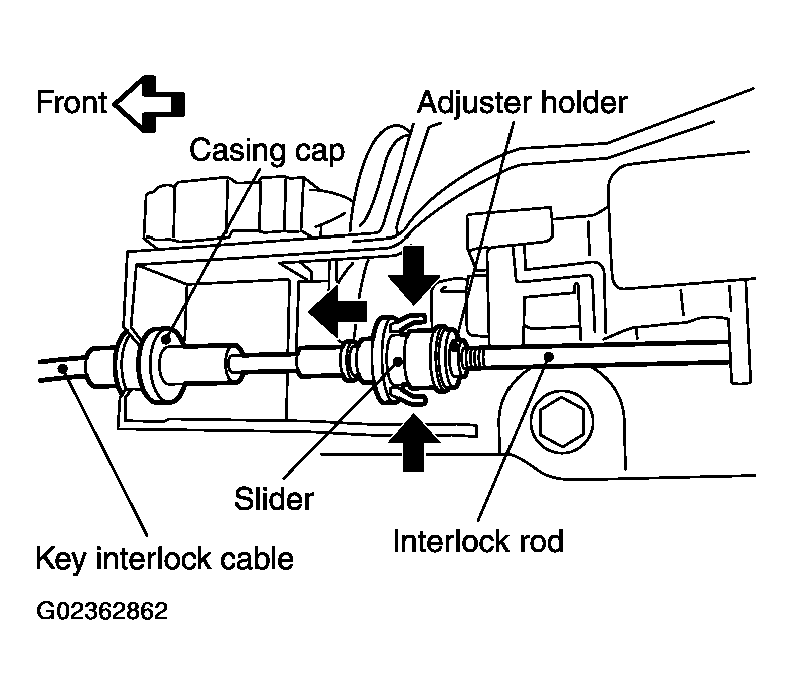

    Fig 1: Removing Casing Cap From Bracket
    G02362862Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

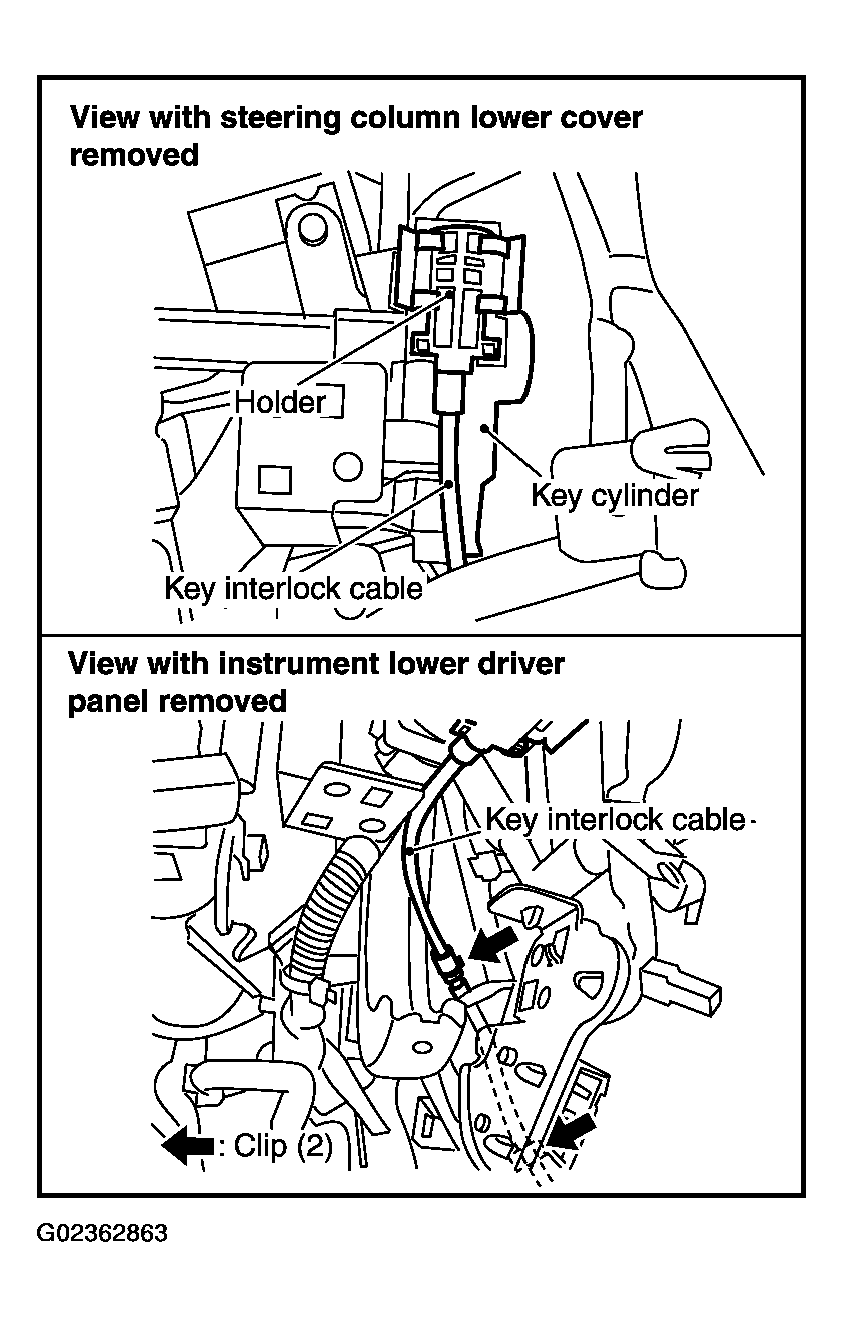

    Fig 2: Removing Holder From Key Cylinder
    G02362863Courtesy of NISSAN MOTOR CO., U.S.A.
