Oil Channel

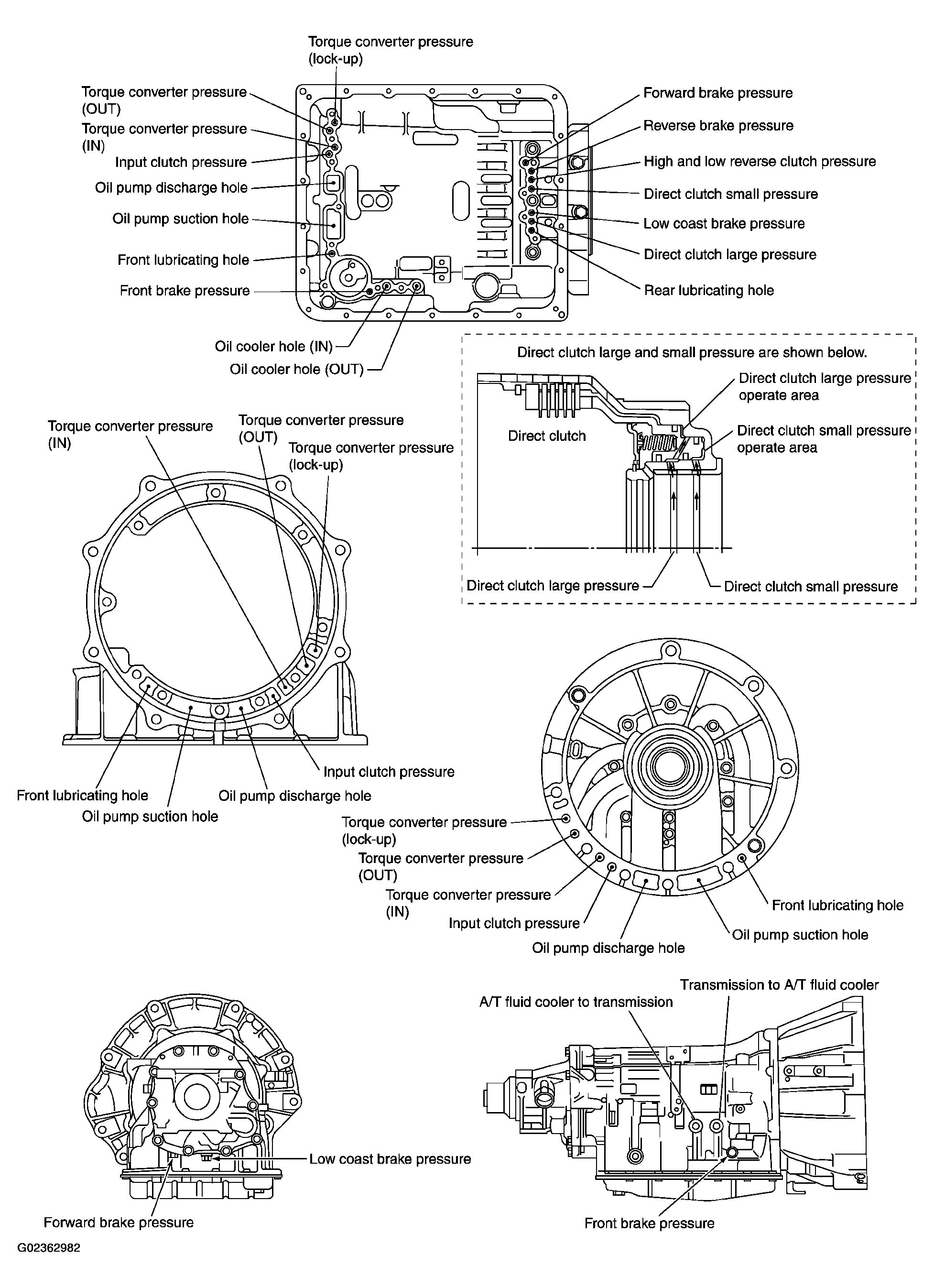

Fig 1: Identifying Oil Channel - 2WD Models
G02362982Courtesy of NISSAN MOTOR CO., U.S.A.

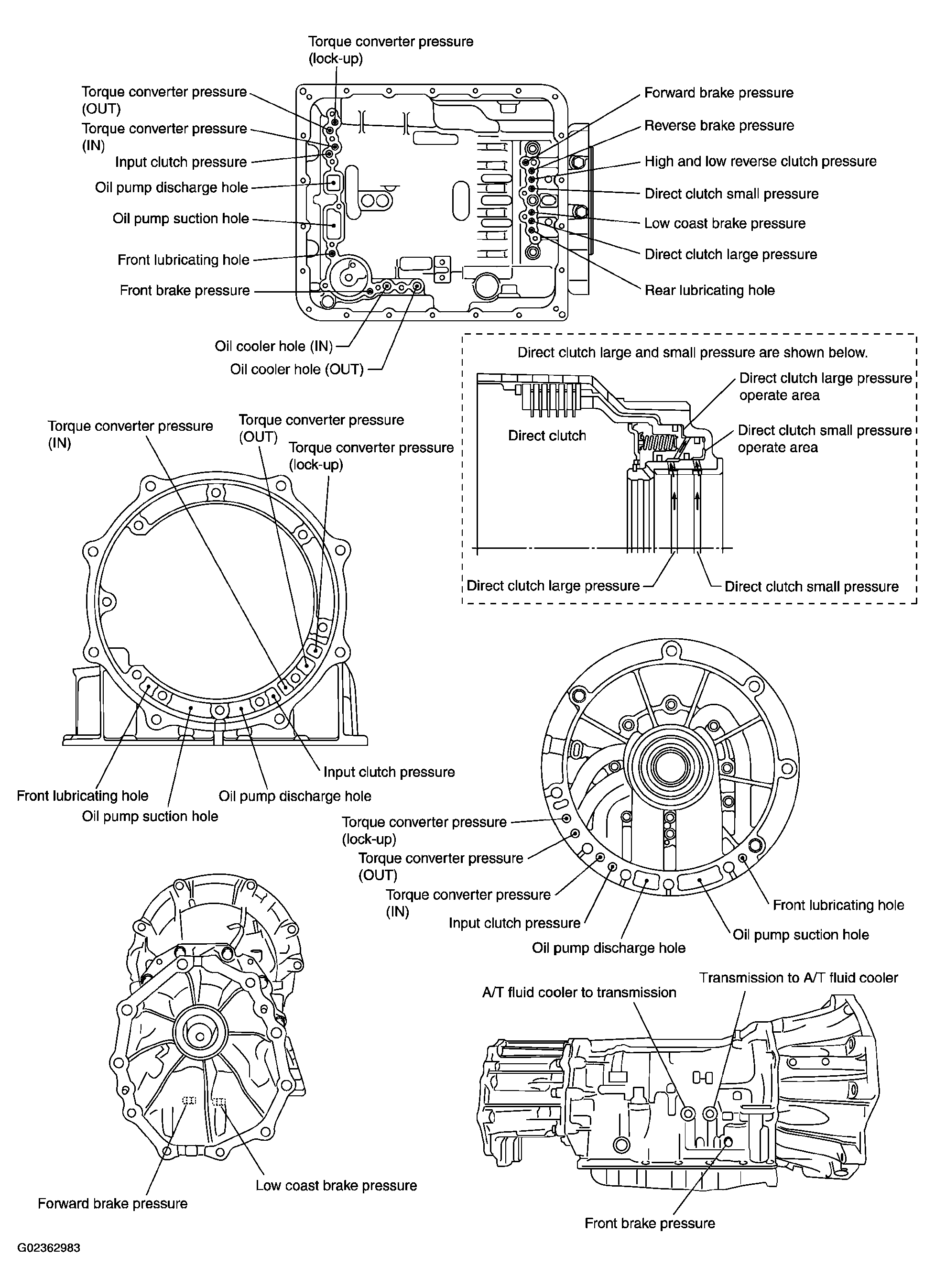

Fig 2: Identifying Oil Channel - AWD Models
G02362983Courtesy of NISSAN MOTOR CO., U.S.A.
