Adjustment of A/T Position

  1. Loosen nut of control rod.
  2. Place PNP switch and selector lever in "P" position.
  3. While pressing lower lever toward rear of vehicle (in "P" position direction), tighten nut to specified torque.
    CAUTION: Do not push the bracket.
    1. : 26 N.m (2.7 kg-m, 19 ft-lb)

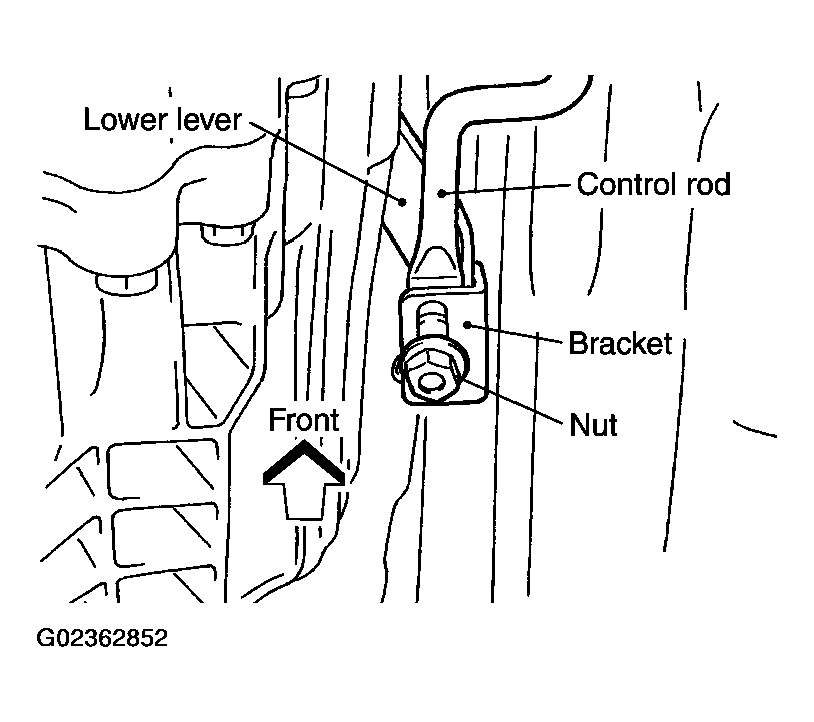

    Fig 1: Loosening Nut Of Control Rod
    G02362852Courtesy of NISSAN MOTOR CO., U.S.A.
