Control Device Components (AWD Models)

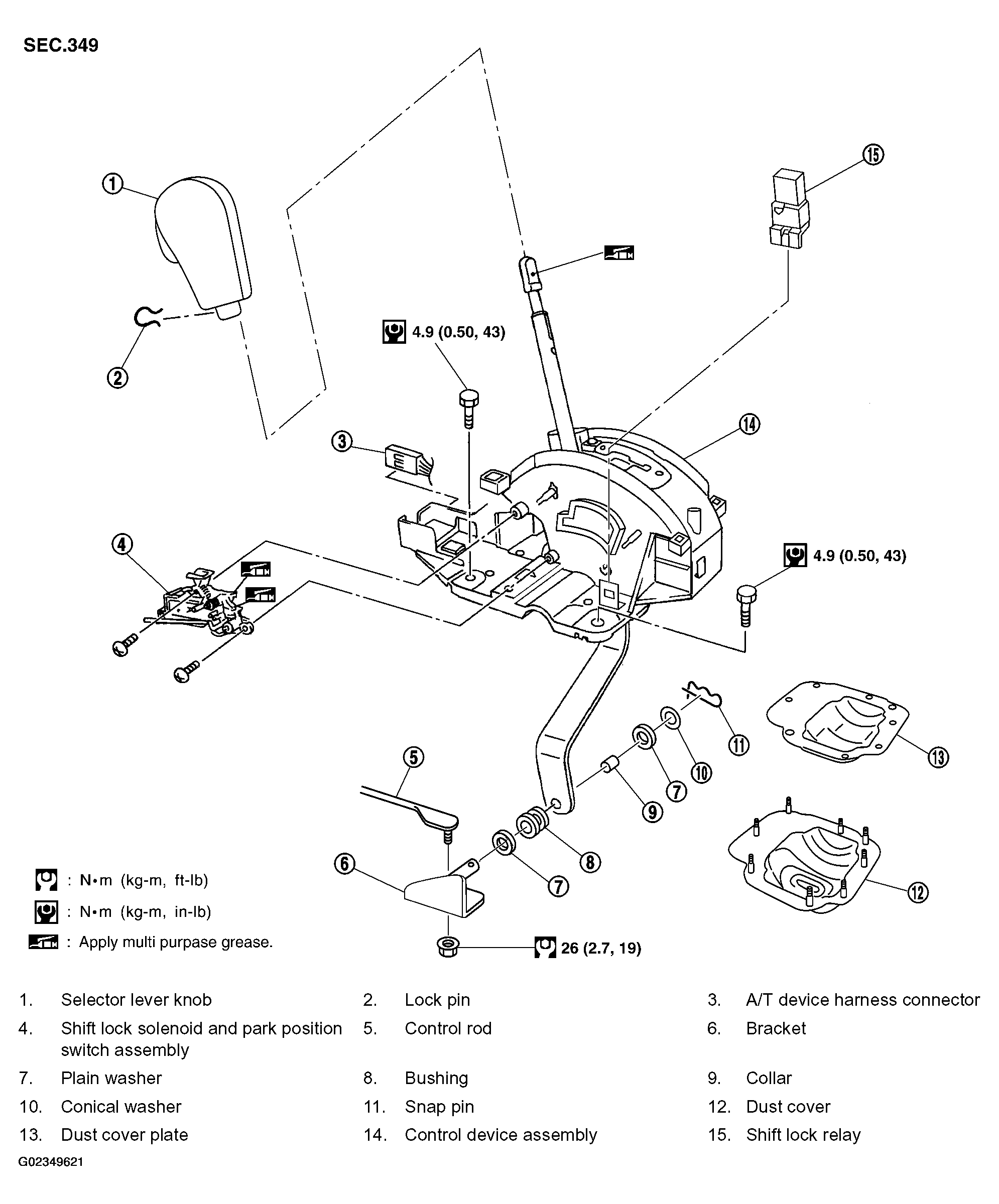

Fig 1: Exploded View Of Control Device Components (AWD Models)
G02349621Courtesy of NISSAN MOTOR CO., U.S.A.
