Power Window Motor (Front Driver Side) Circuit Check

CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.

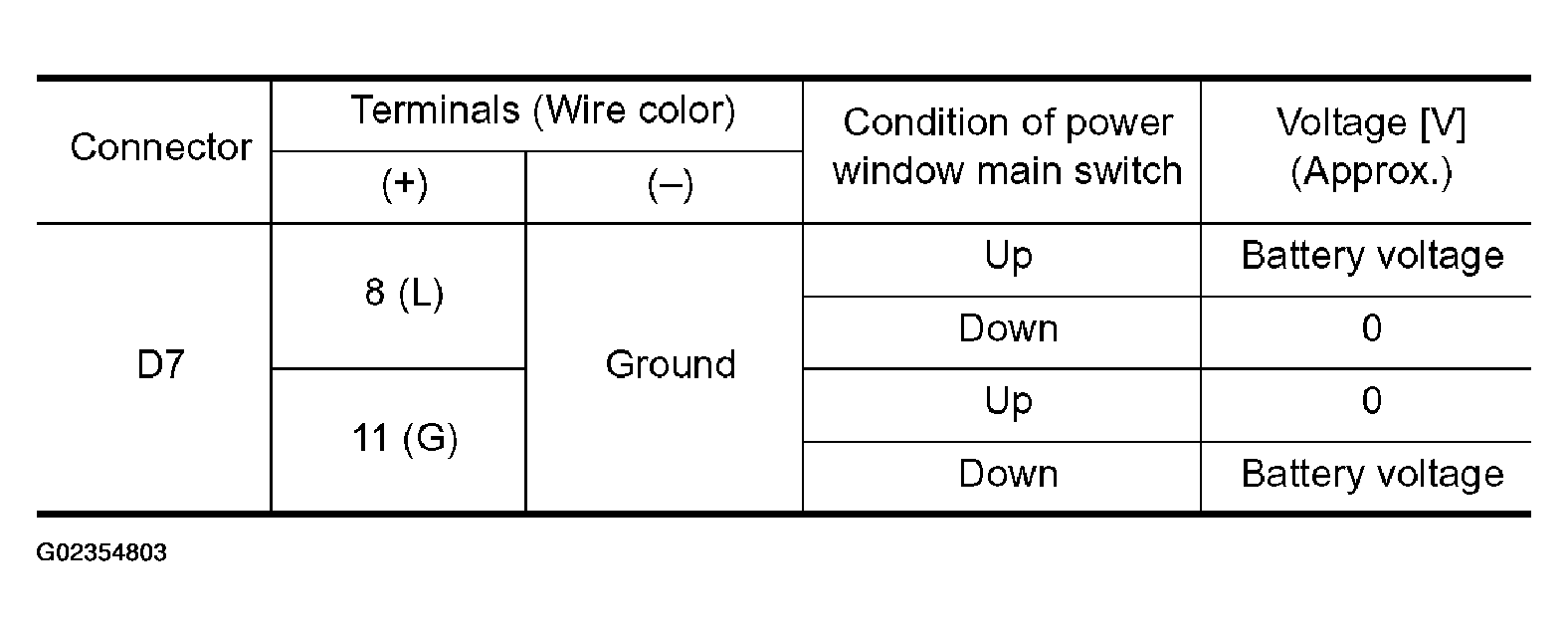

  Fig 1: Voltage Check Between Power Window Main Switch Connector And Ground Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

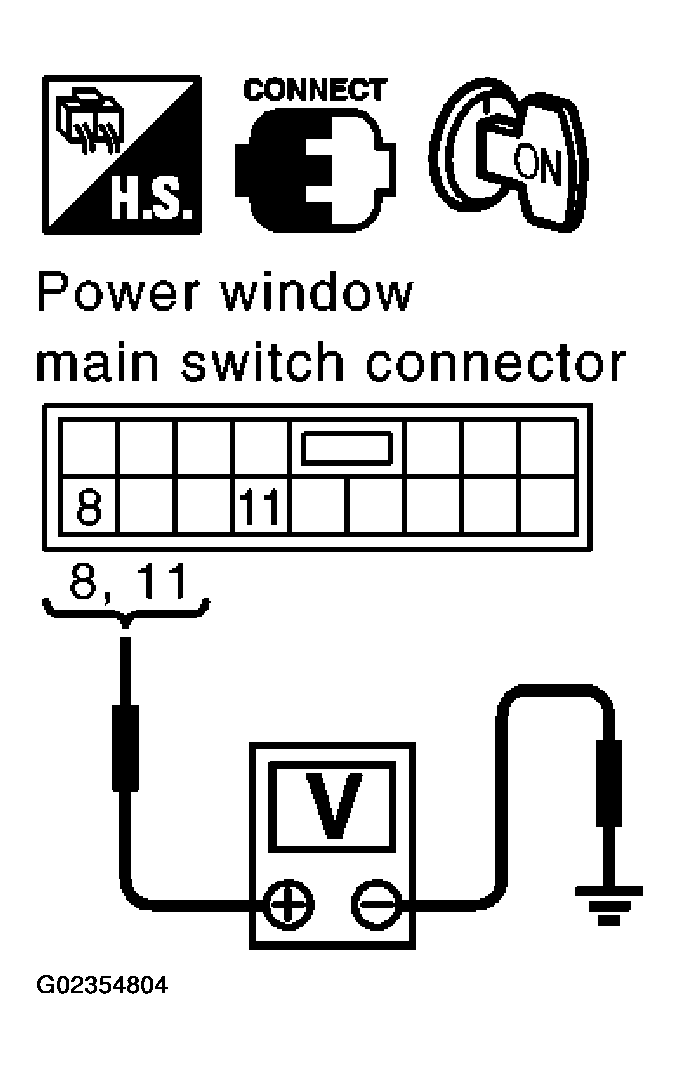

  Fig 2: Checking Voltage Between Power Window Main Switch Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace power window main switch.
CHECK POWER WINDOW MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch and power window motor (front driver side) connector.
3. Check continuity between power window main switch connector D7 terminal 8, 11 and power window motor (front driver side) connector D9 terminal 1,2.
  8 (L) - 2 (L): Continuity should exist.

  11 (G) - 1 (G): Continuity should exist.
OK or NG
1. OK: Replace power window motor (front driver side).
2. NG: Repair or replace harness.

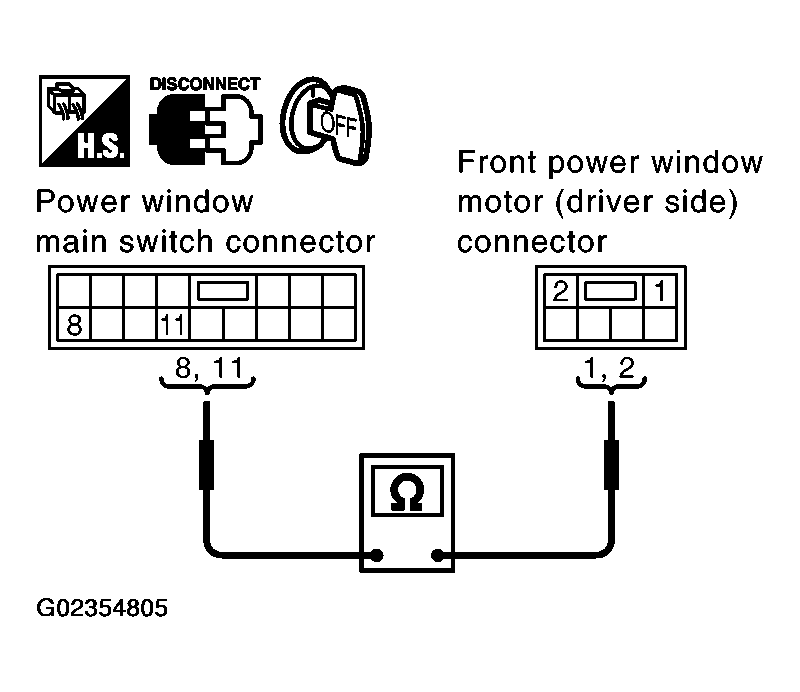

  Fig 3: Checking Continuity Between Power Window Main Switch Connector D7 Terminal 8, 11 And Power Window Motor (Front Driver Side) Connector D9 Terminal 1,2
  Courtesy of NISSAN MOTOR CO., U.S.A.
