Terminal And Reference Value For Power Window Main Switch/With Front And Rear Power Window Anti-Pinch System

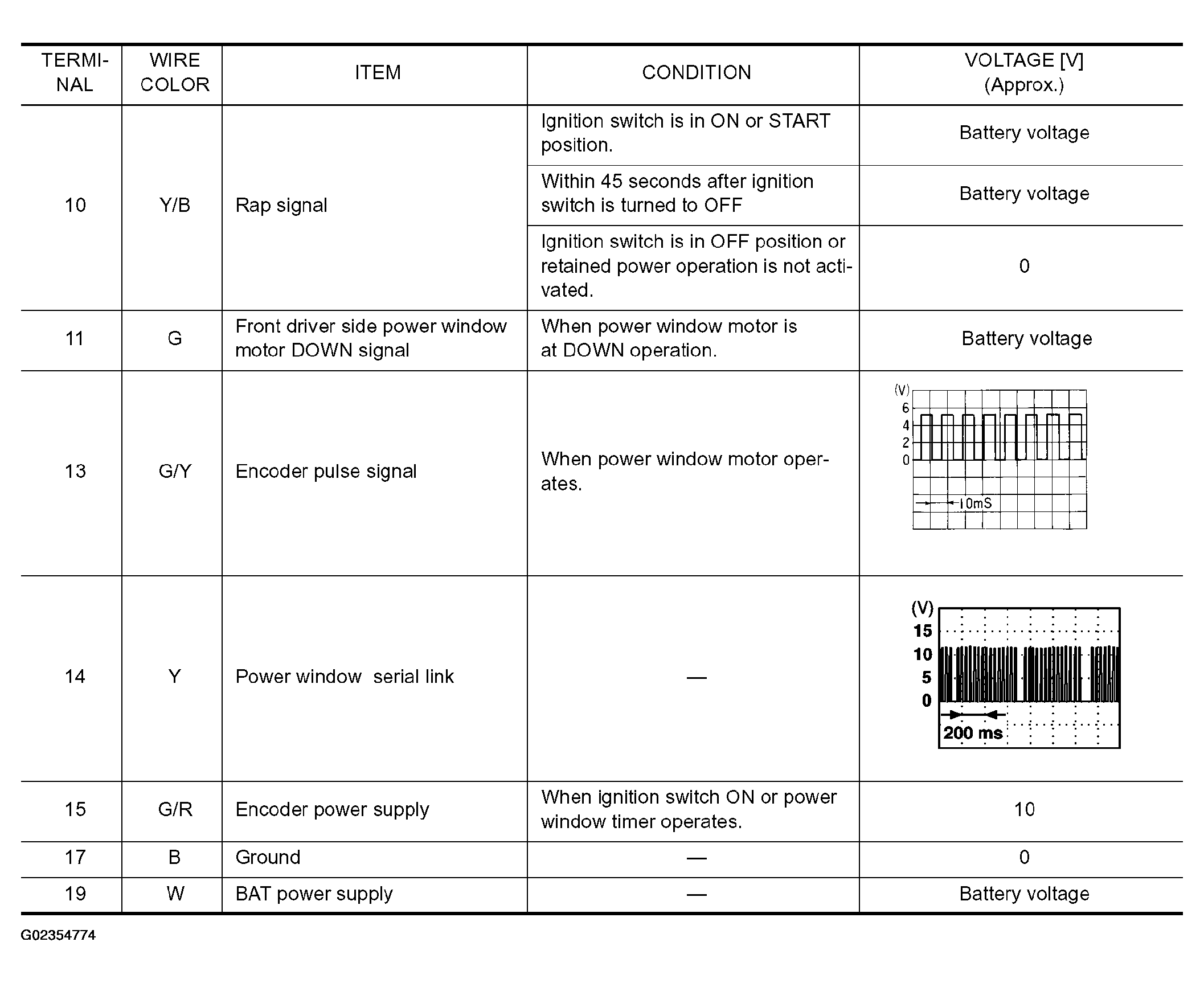

Fig 1: Terminal And Reference Value For Power Window Main Switch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Terminal And Reference Value For Power Window Main Switch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
