Intake Air Temperature Sensor

Check resistance between mass air flow sensor terminals 5 and 6 under the following conditions.

MASS AIR FLOW SENSOR TERMINALS 5 AND 6 RESISTANCE SPECIFICATION

Intake air temperature °C (°F)	Resistance kΩ
25 (77)	1.94 - 2.06

If NG, replace mass air flow sensor (with intake air temperature sensor).

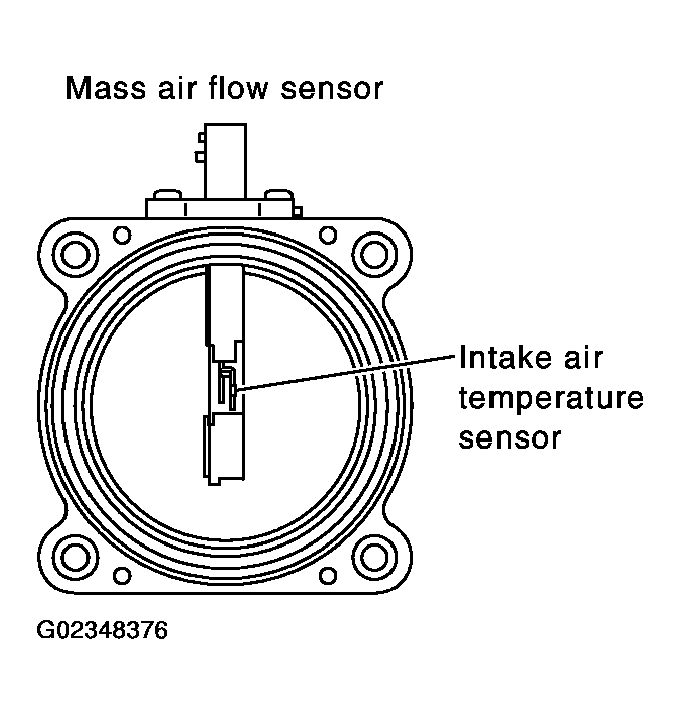

Fig 1: Identifying Intake Air Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

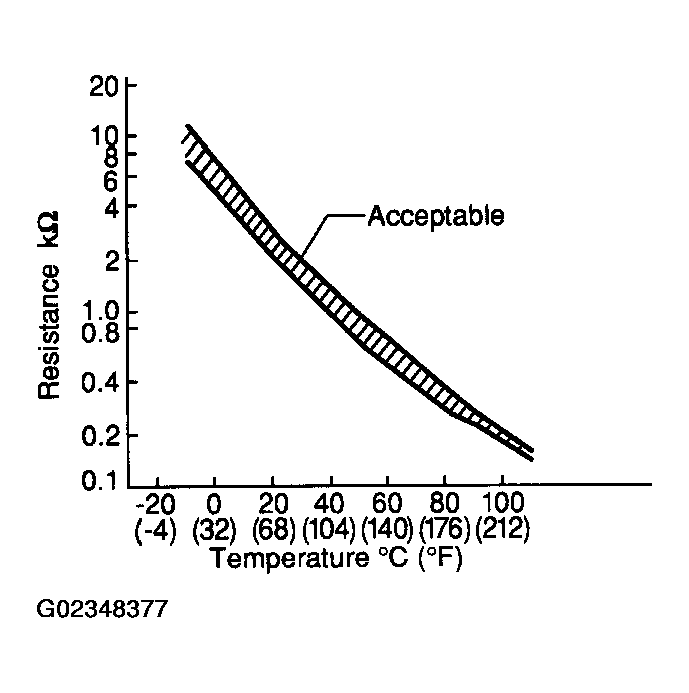

Fig 2: Intake Air Temperature Sensor Temperature/Resistance Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
