Throttle Position Sensor

Reconnect all harness connectors disconnected.
Perform "Throttle Valve Closed Position Learning ".
Turn ignition switch ON.
Set shift lever to D (A/T) or 1st (M/T) position.
Check voltage between ECM terminals 50 (TP sensor 1 signal), 69 (TP sensor 2 signal) and ground under the following conditions.

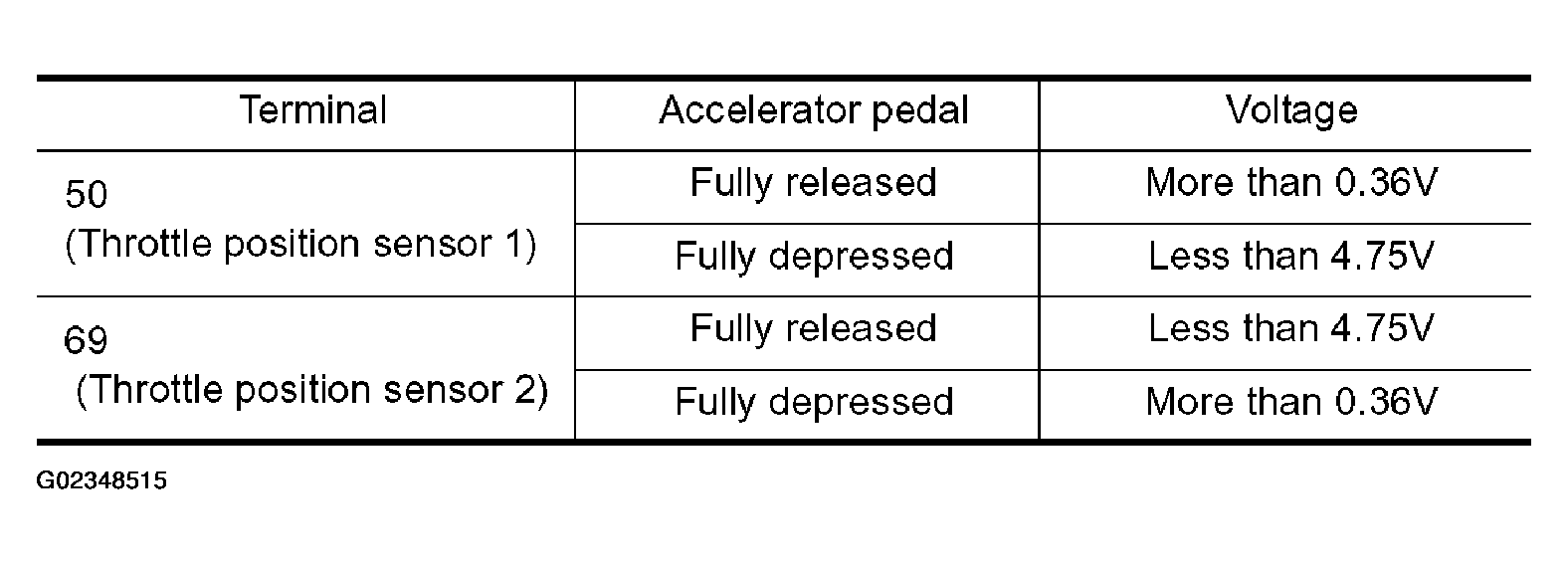

Fig 1: Voltage Table Of ECM Terminals 50 (TP Sensor 1 Signal), 69 (TP Sensor 2 Signal) & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

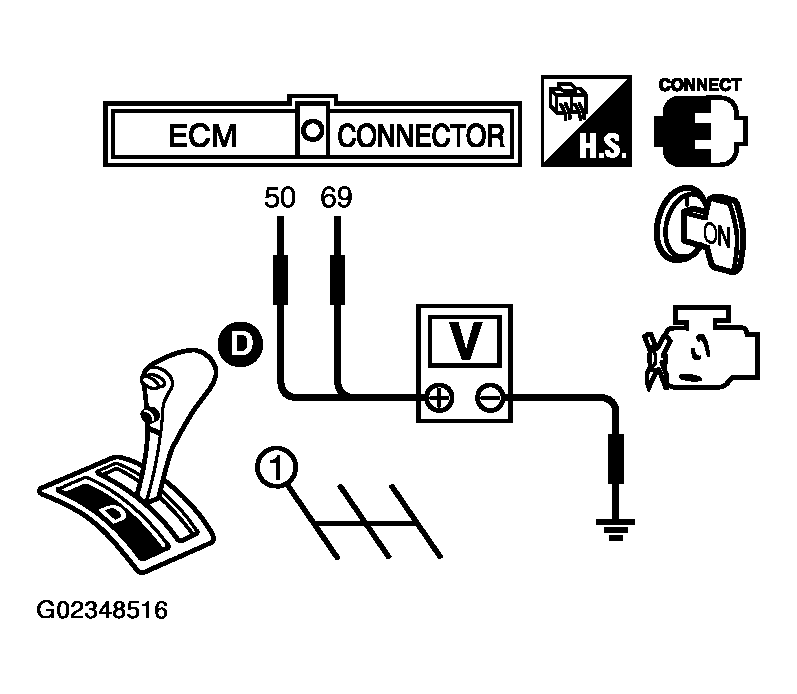

Fig 2: Checking Voltage Between ECM Terminals 50 (TP Sensor 1 Signal), 69 (TP Sensor 2 Signal) & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace electric throttle control actuator and go to the next step.
Perform "Throttle Valve Closed Position Learning ".
Perform "Idle Air Volume Learning ".
