Power Steering Pressure Sensor

  1. Reconnect all harness connectors disconnected.
  2. Start engine and let it idle.
  3. Check voltage between ECM terminal 12 and ground under the following conditions.
    ECM TERMINAL 12 AND GROUND VOLTAGE CONDITION CHECK

    Condition Voltage
    Steering wheel: Being turned. 0.5 - 4.5V
    Steering wheel: Not being turned. 0.4 - 0.8V

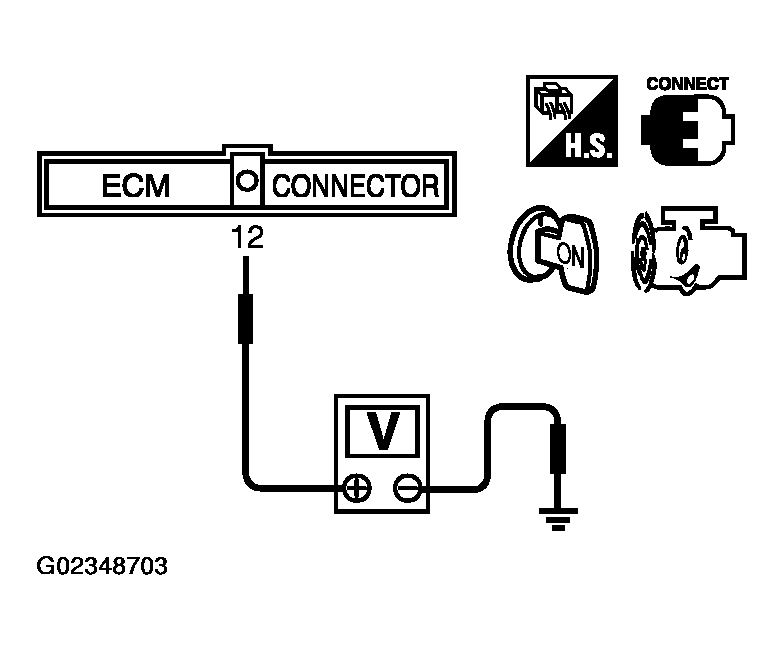

    Fig 1: Checking Voltage Between ECM Terminal 12 And Ground
    G02348703Courtesy of NISSAN MOTOR CO., U.S.A.
