With CONSULT-II

  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
  4. Repeat step 3 for 32 times.
  5. If 1st trip DTC is detected, go to "Diagnostic Procedure ".

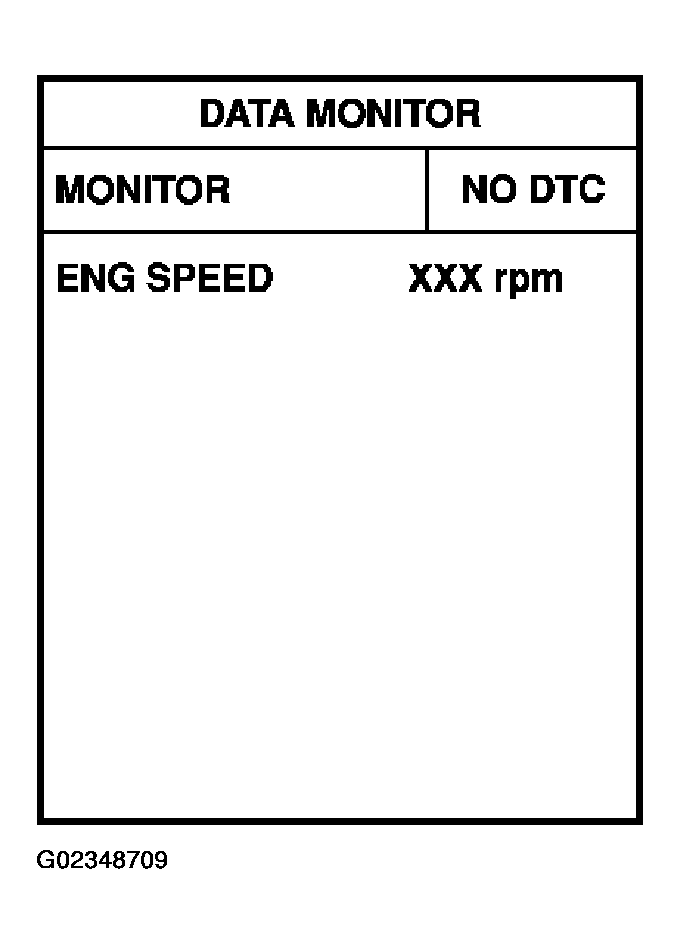

    Fig 1: Select "DATA MONITOR" Mode With CONSULT-II
    G02348709Courtesy of NISSAN MOTOR CO., U.S.A.
