DTC P1111, P1136: IVT Control Solenoid Valve
>>
CONSULT-II Reference Value in Data Monitor Mode
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

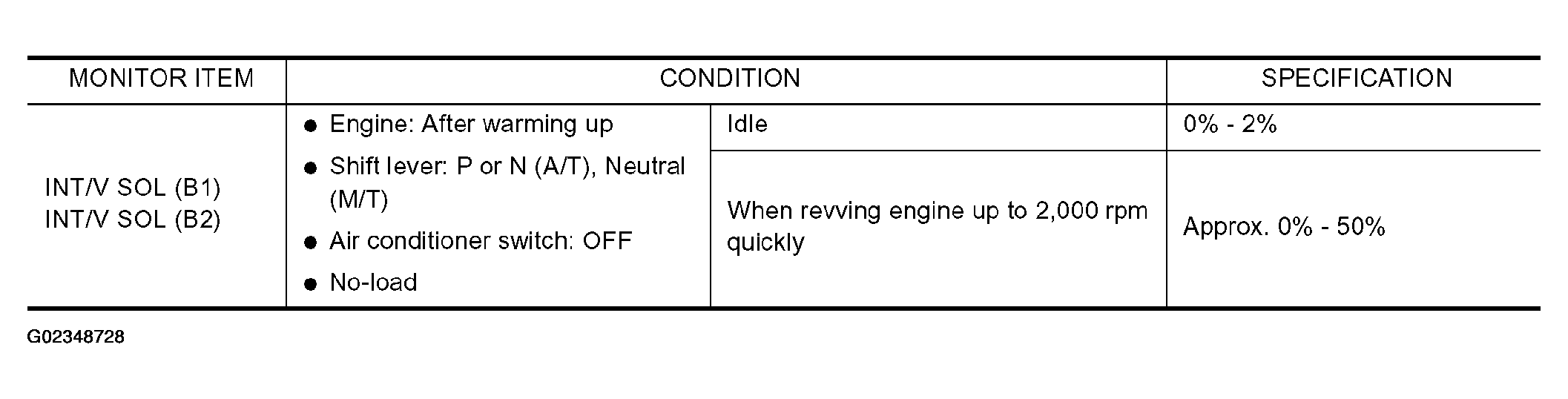

Fig 1: Reference Value In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
