With Consult-II

  1. Turn ignition switch ON and wait at least 2 seconds.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 5 seconds.
  4. If DTC is detected, go to "Diagnostic Procedure ".

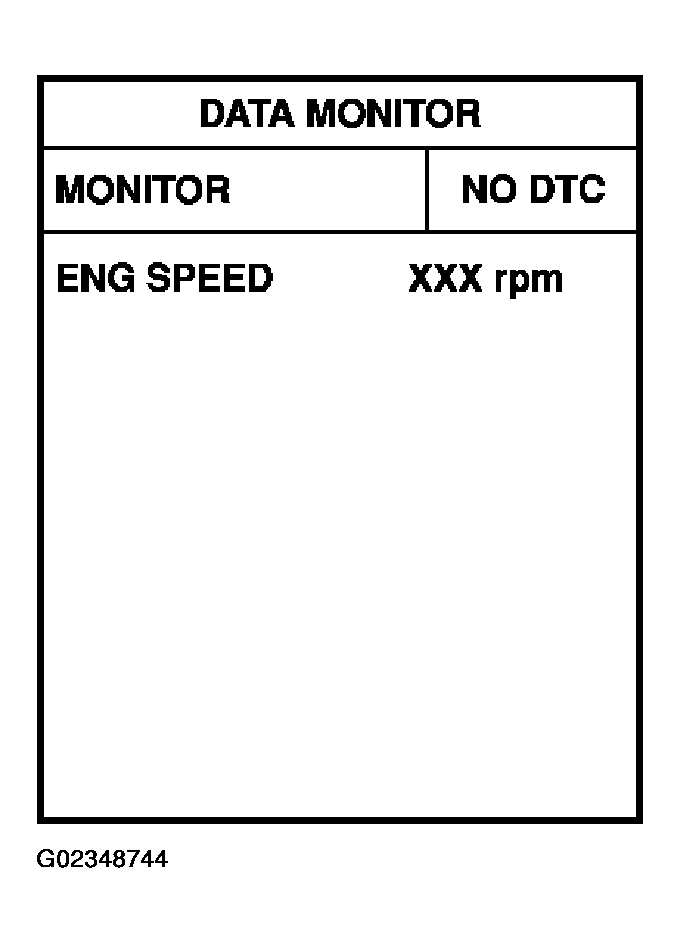

    Fig 1: Selecting "DATA MONITOR" Mode With CONSULT-II
    G02348744Courtesy of NISSAN MOTOR CO., U.S.A.
