Cooling Fan Operation

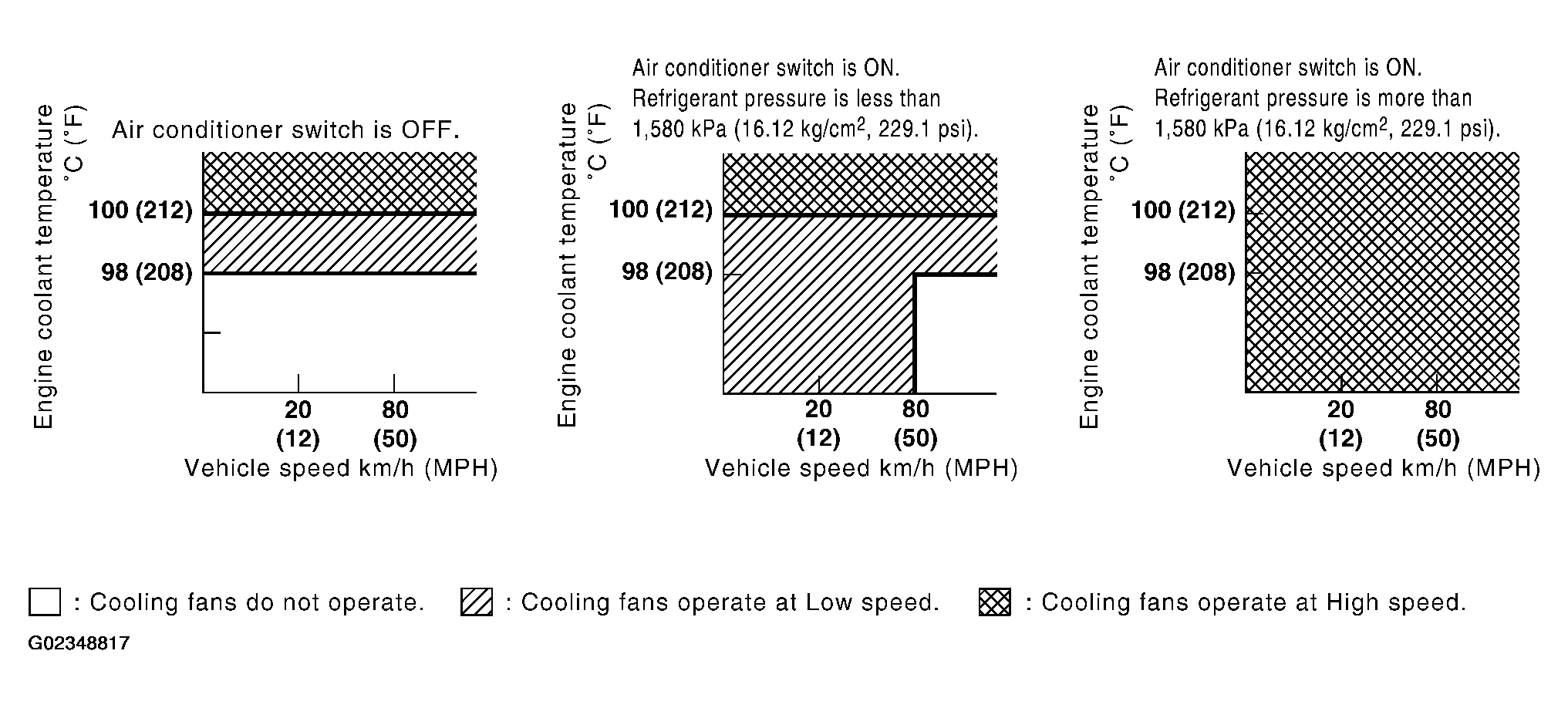

Fig 1: Cooling Fan Operation Graph Between Vehicle Speed And Engine Coolant Temperature
G02348817Courtesy of NISSAN MOTOR CO., U.S.A.
