Procedure A

  1. CHECK POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect IPDM E/R harness connector E6.
    3. Check voltage between IPDM E/R terminals 15, 16 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    1. OK: GO TO  3.
    2. NG: GO TO 2.

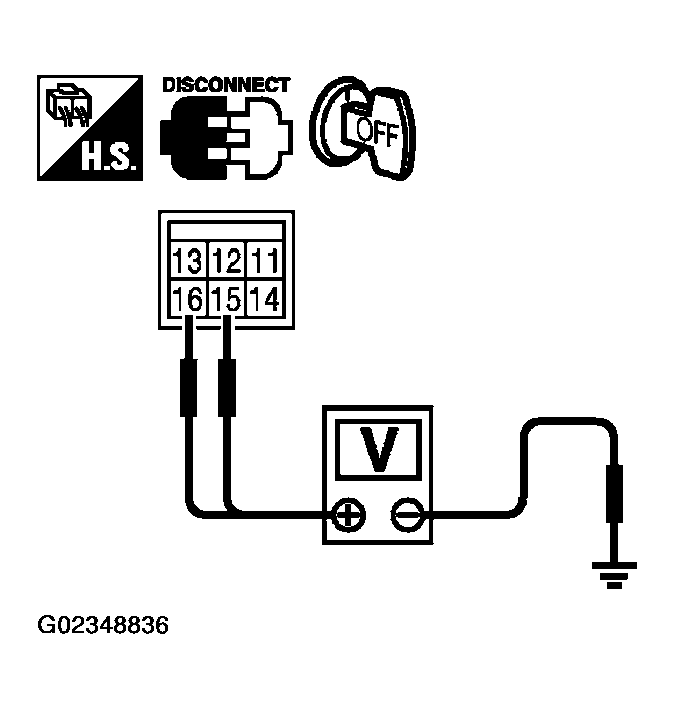

      Fig 1: Checking Voltage Between IPDM E/R Terminals 15, 16 And Ground With Tester
      G02348836Courtesy of NISSAN MOTOR CO., U.S.A.
  2. DETECT MALFUNCTIONING PART

    Check the following.

    • 40A fusible links
    • Harness for open or short between IPDM E/R and battery
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  3. CHECK COOLING FAN MOTORS CIRCUIT
    1. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
    2. Disconnect all IPDM E/R harness connector.
    3. Check harness continuity between the following; cooling fan motor-1 terminal 2 and IPDM E/R terminal 11, cooling fan motor-1 terminal 3 and ground. IPDM E/R terminal 38, 60 and ground. Refer to wiring diagram.

      Continuity should exist.

    4. Also check harness for short to ground and short to power.
      Fig 2: Locating Cooling Fan Motor-1 And 2 Harness Connector
      G02348837Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Check harness continuity between the following; cooling fan motor-2 terminal 2 and IPDM E/R terminal 10, cooling fan motor-2 terminal 3 and ground. Refer to wiring diagram.

      Continuity should exist.

    6. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness for open or short between cooling fan motors-1, 2 and IPDM E/R
    • Harness for open or short between cooling fan motors-1, 2 and ground
    • Harness for open or short between IPDM E/R and ground
    1. : Repair open circuit or short to ground or short to power in harness connectors.
  5. CHECK COOLING FAN MOTORS

    Refer to "Component Inspection ".

    OK or NG

    1. OK: GO TO 6.
    2. NG: Replace cooling fan motors.
  6. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG

    1. OK: Replace IPDM E/R. Refer to "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) ".
    2. NG: Repair or replace harness or connector.
