ASCD Steering Switch

  1. Disconnect combination switch (spiral cable) harness connector M203>.
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

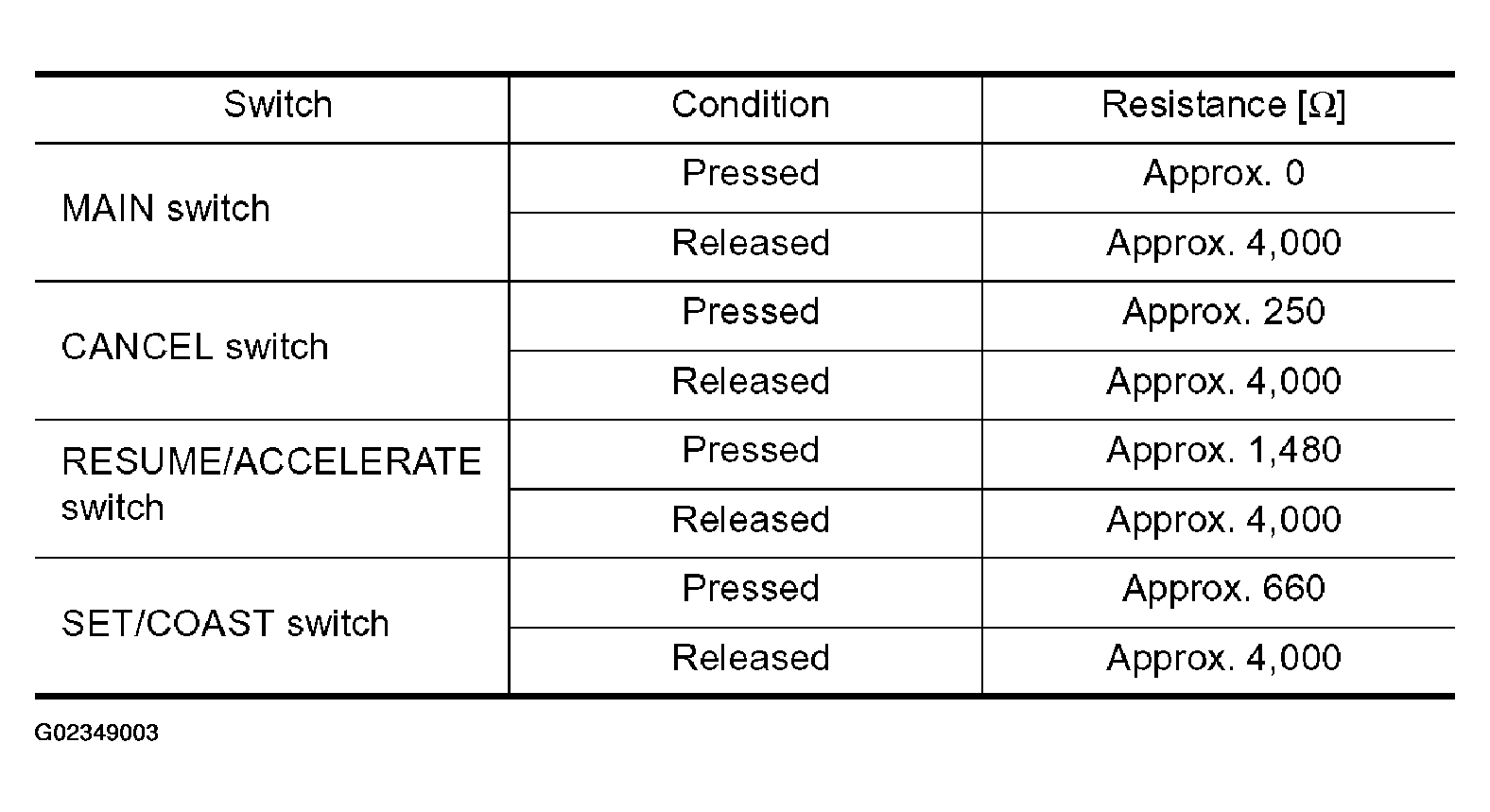

    Fig 1: Switch Condition Resistance Table
    G02349003Courtesy of NISSAN MOTOR CO., U.S.A.

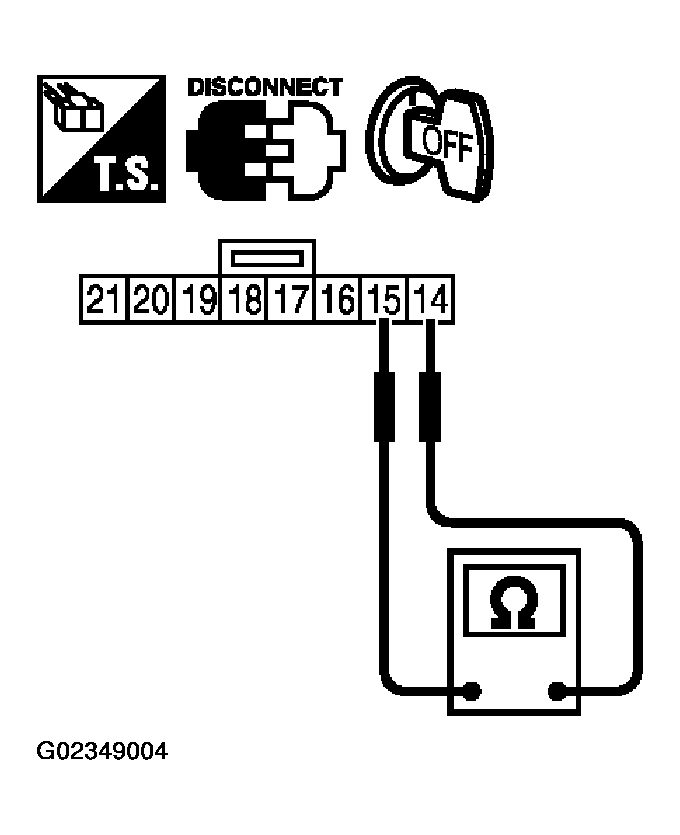

    Fig 2: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 14 And 15 With Pushing Each Switch
    G02349004Courtesy of NISSAN MOTOR CO., U.S.A.
