With Consult-II

  1. Start engine (VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Press MAIN switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    TESTING CONDITION

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Shift lever Suitable position

    If 1st trip DTC is detected, go to "Diagnostic Procedure "

    If 1st trip DTC is not detected, go to the following step.

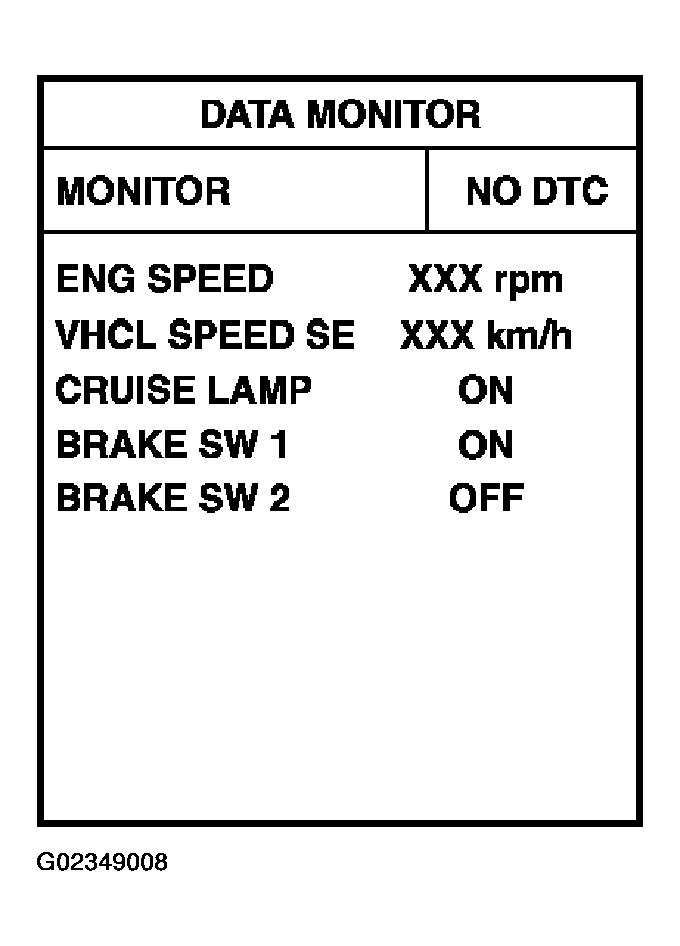

    Fig 1: Data Monitor Display
    G02349008Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    DATA MONITOR DISPLAY

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Shift lever Suitable position
    Driving location Depress the brake pedal for more than five seconds so as not to come off from the above-mentioned vehicle speed.
  6. If 1st trip DTC is detected, go to "Diagnostic Procedure ".
