With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.
    CONDITION MAINTAIN

    Condition (Shift lever) Voltage (Known good data)
    P or N position (A/T) Approx. 0V
    Neutral position (M/T) Approx. 0V
    Except above position BATTERY VOLTAGE (11 - 14V)
  3. If NG, go to "Diagnostic Procedure ".

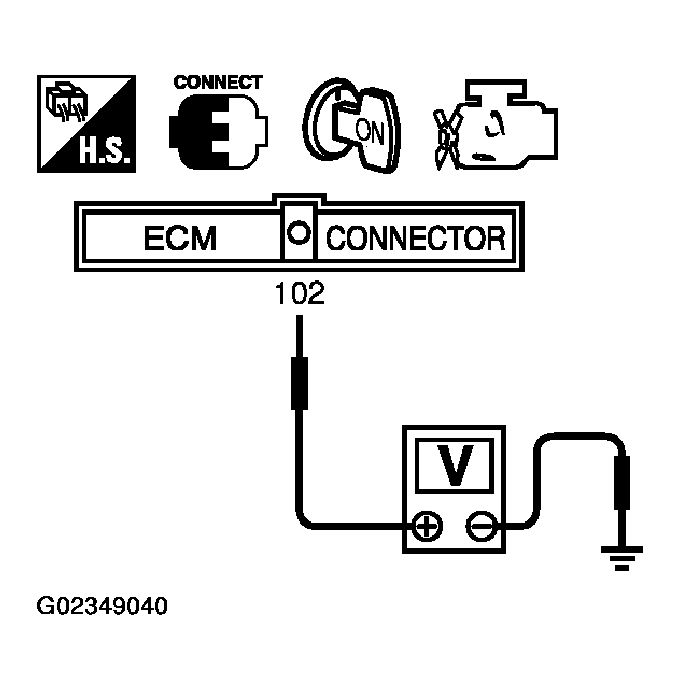

    Fig 1: Checking Voltage Between ECM Terminal 102 (PNP Switch Signal) And Ground
    G02349040Courtesy of NISSAN MOTOR CO., U.S.A.
