Diagnostic Procedure

1. Turn ignition switch ON.
2. Connect CONSULT-II and select "DATA MONITOR" mode.
3. Select "LOAD SIGNAL" and check indication under the following conditions.
   CHECK



   Condition	Indication
   Rear window defogger switch: ON	ON
   Rear window defogger switch: OFF	OFF

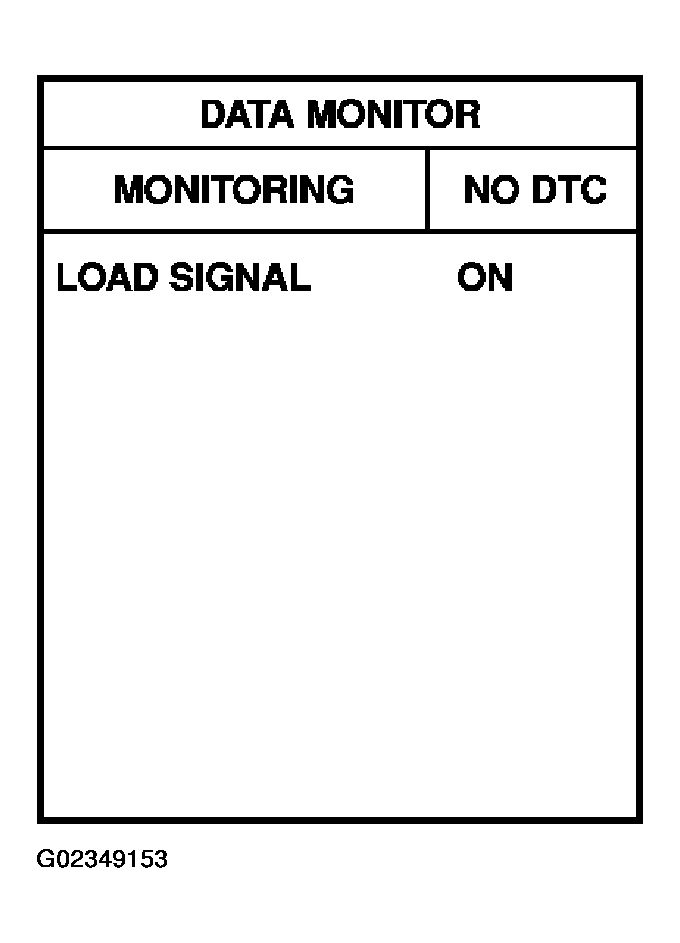

   Fig 1: Data Monitor Display

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: GO TO  3.

Check "LOAD SIGNAL" indication under the following conditions.

Fig 2: Data Monitor Display (Load Signal)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTION END
2. NG: GO TO  4.

Refer to "REAR WINDOW DEFOGGER ".

1. : INSPECTION END

Refer to "HEADLAMP (FOR USA) " or "HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM ".

1. : INSPECTION END
