Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - Sedan
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Work Flow
>>
Overall Sequence
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Overall Sequence

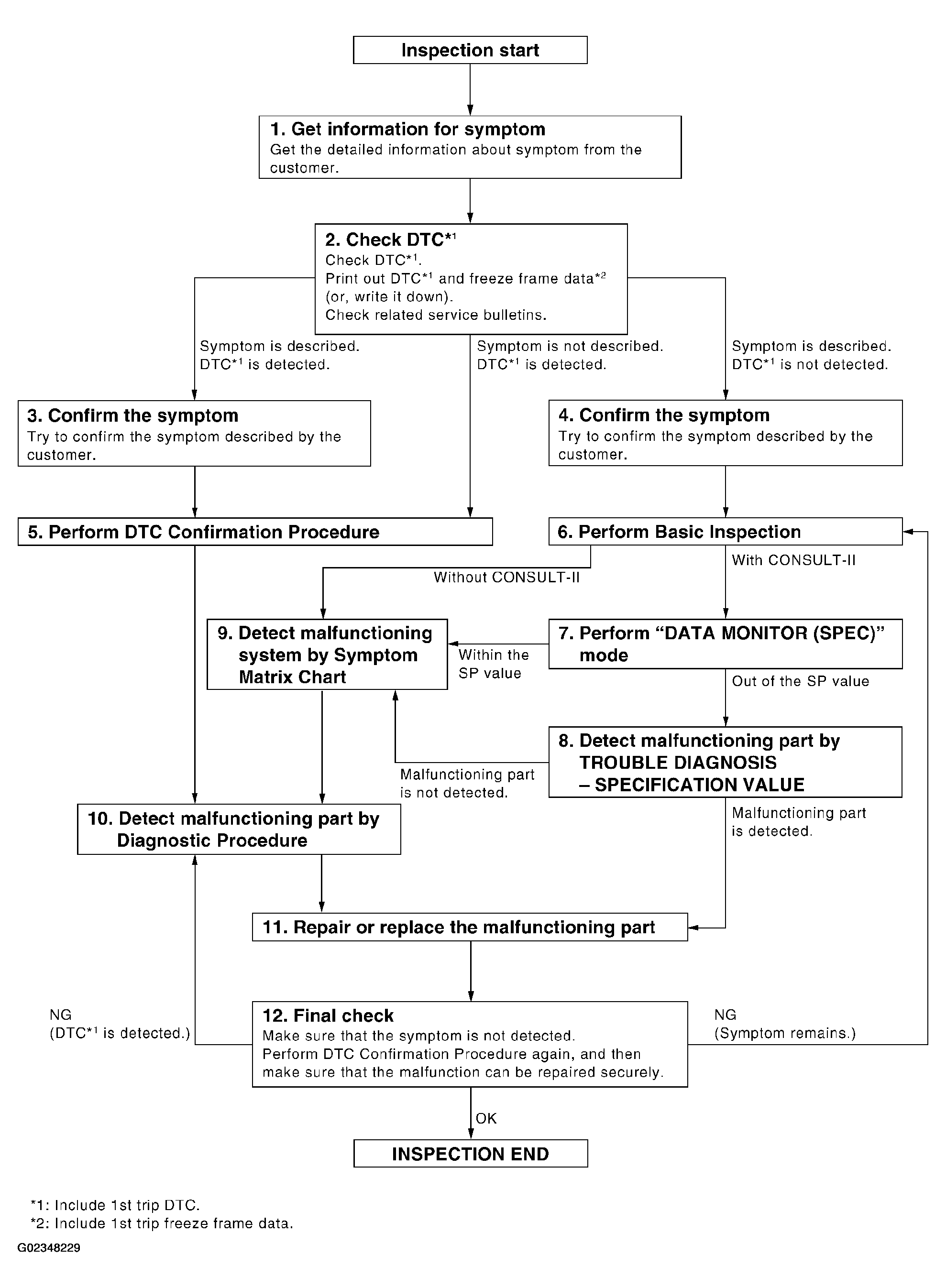

Fig 1: Work Flow Overall Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
