Transmission Revolution Sensor: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

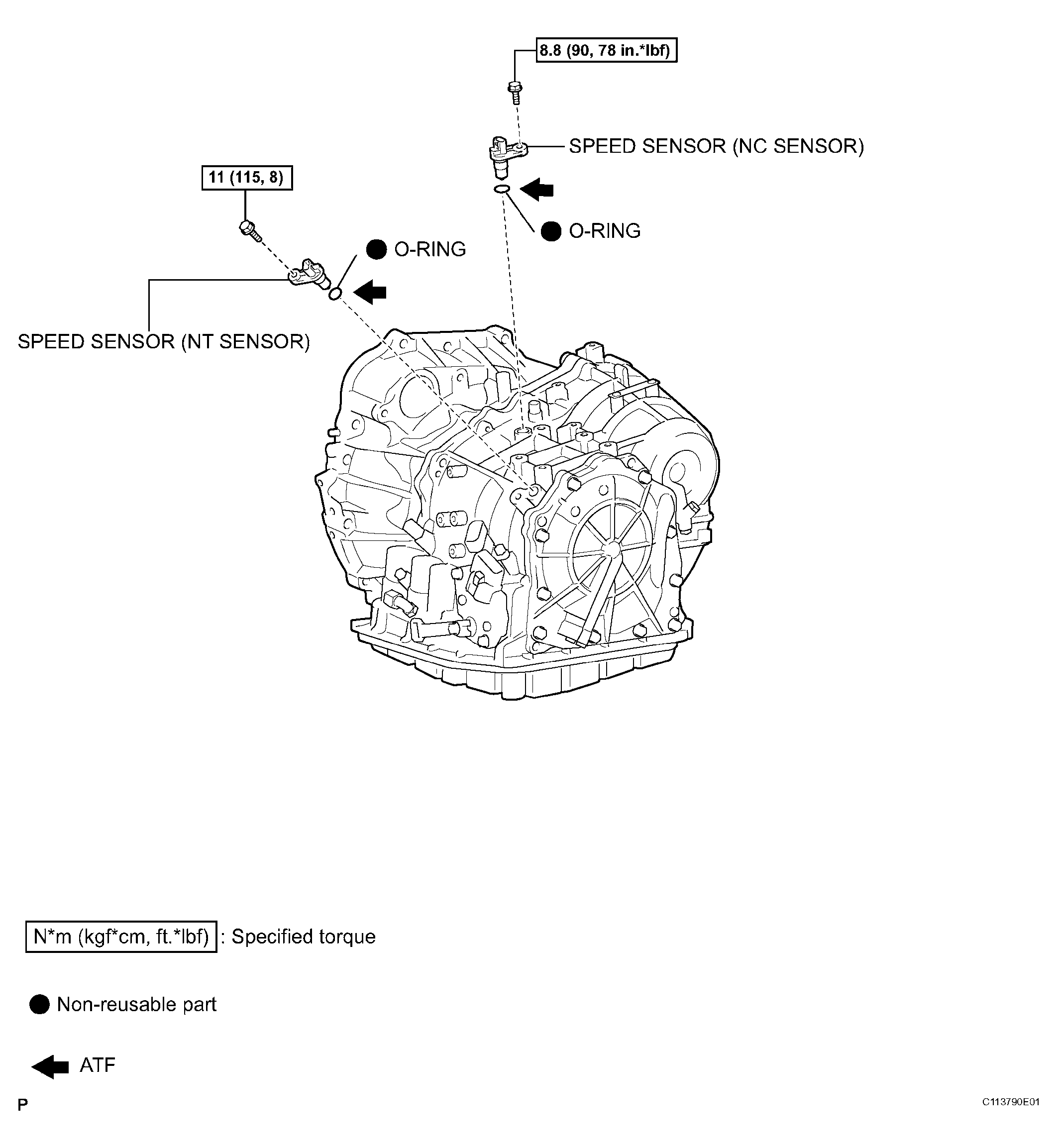

Fig 1: Identifying Transmission Revolution Sensor Components
G04222233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
