On Board Diagnosis Logic

WARNING: This page is about a different variant/trim than selected.

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and EVAP canister purge volume control solenoid valve.

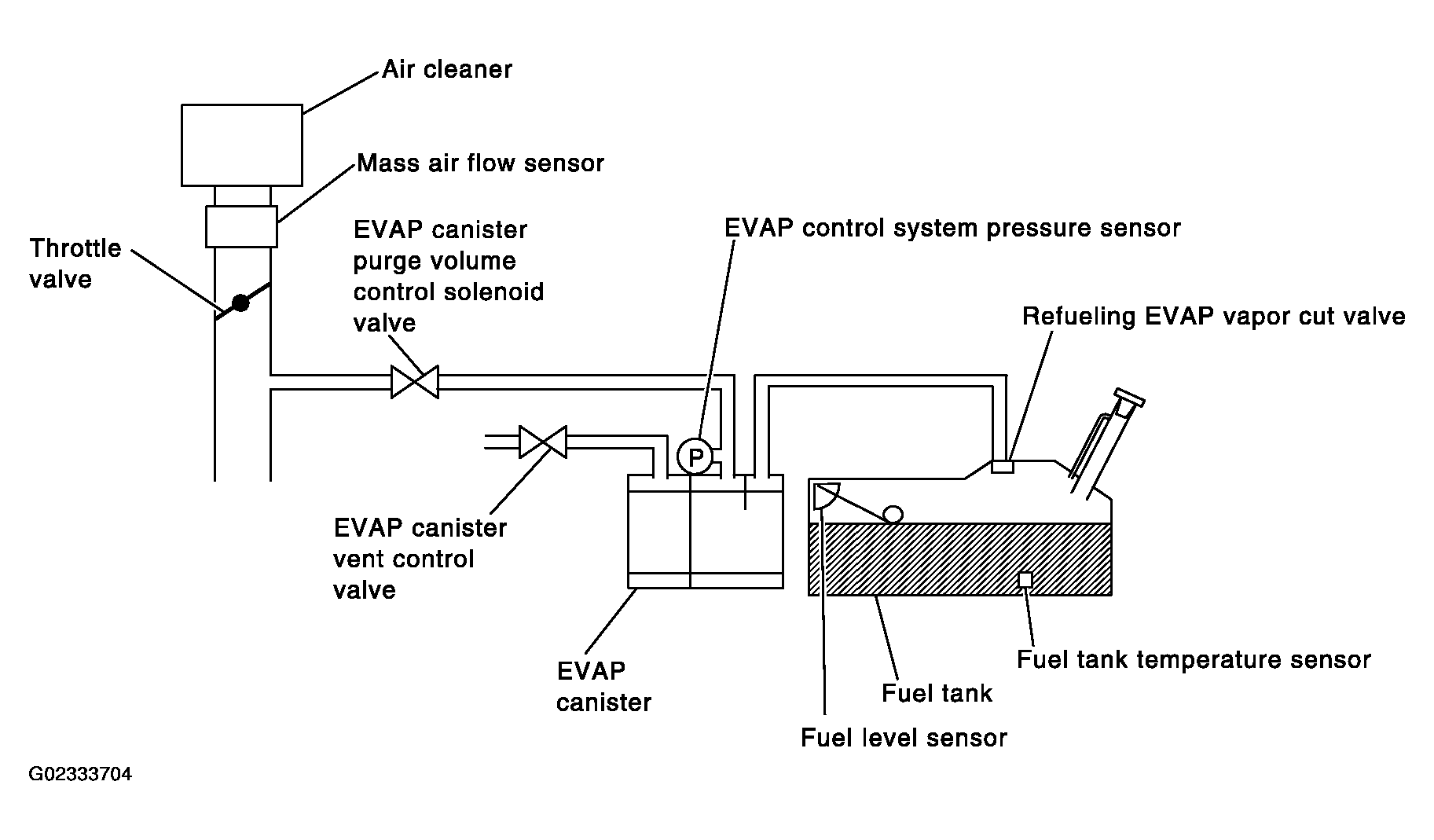

Fig 1: DTC P0455 EVAP Control System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

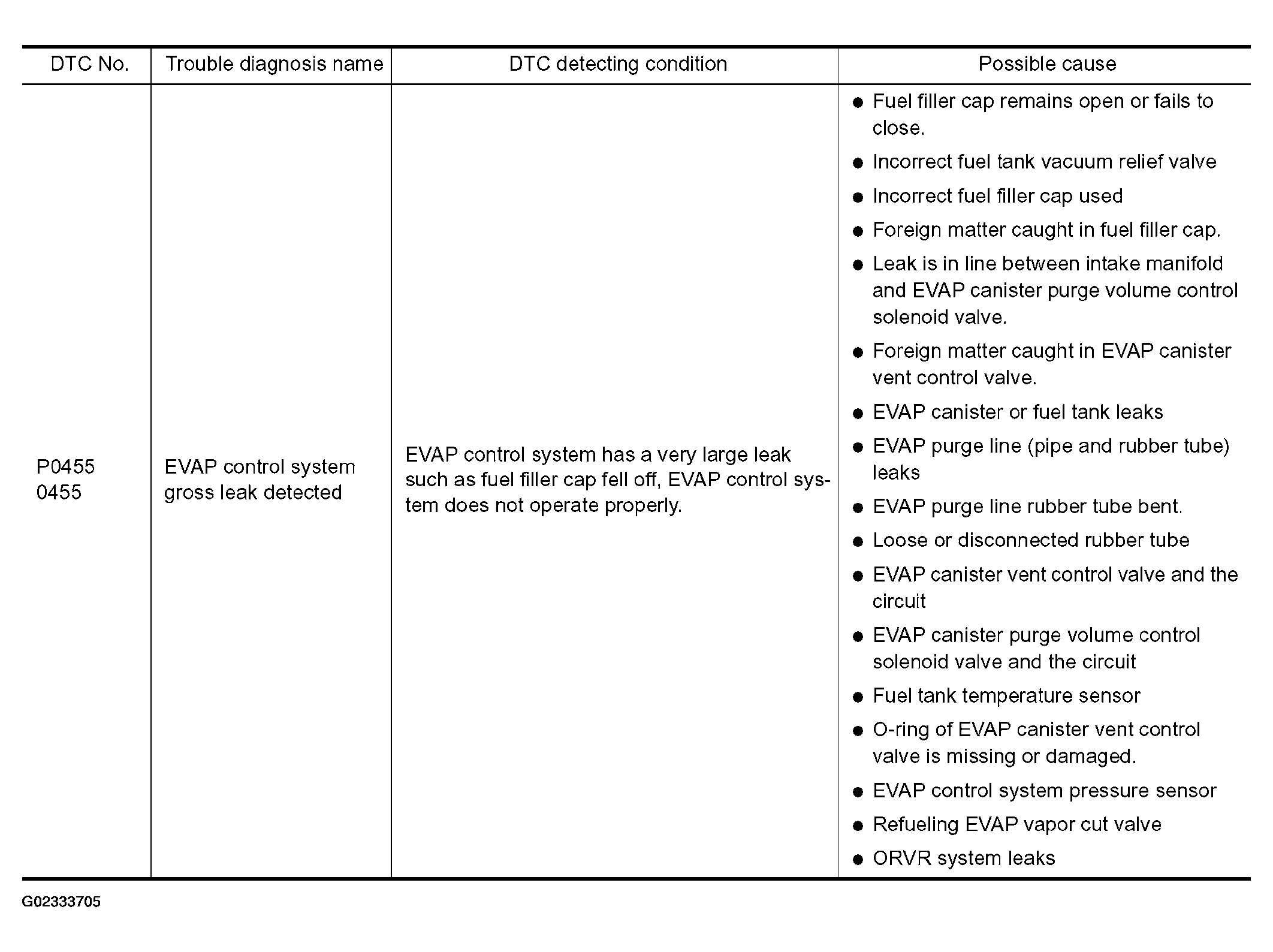

Fig 2: On Board Diagnosis Logic Chart (DTC P0455)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
If the fuel filler cap is not tightened properly, the MIL may come on.
Use only a genuine NISSAN rubber tube as a replacement.
