ASCD Steering Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect combination switch (spiral cable) harness connector M203.
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

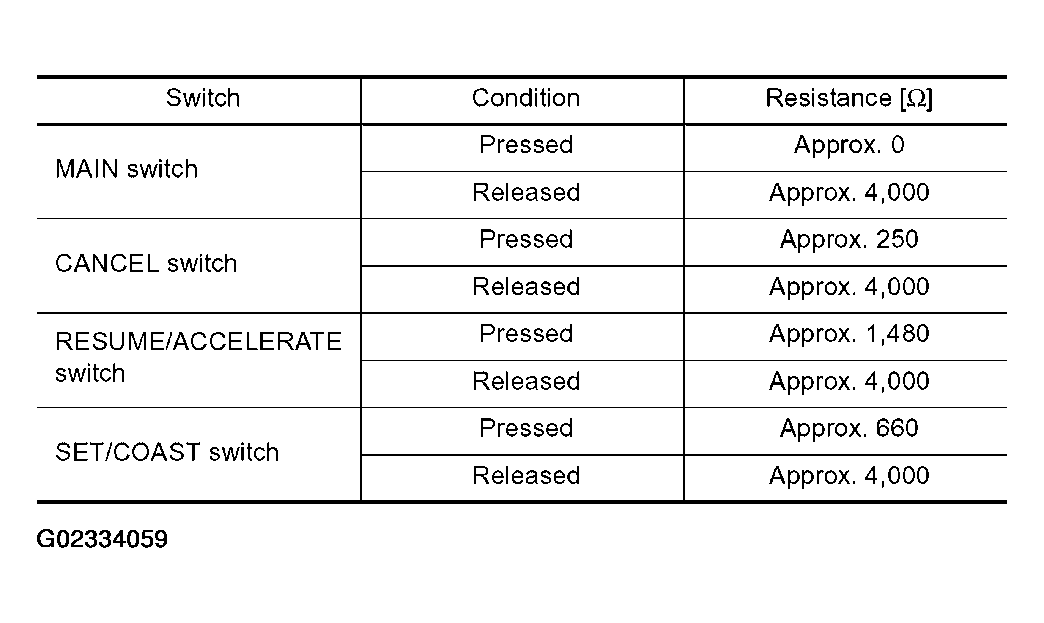

    Fig 1: ASCD Steering Switch Resistance Chart
    G02334059Courtesy of NISSAN MOTOR CO., U.S.A.

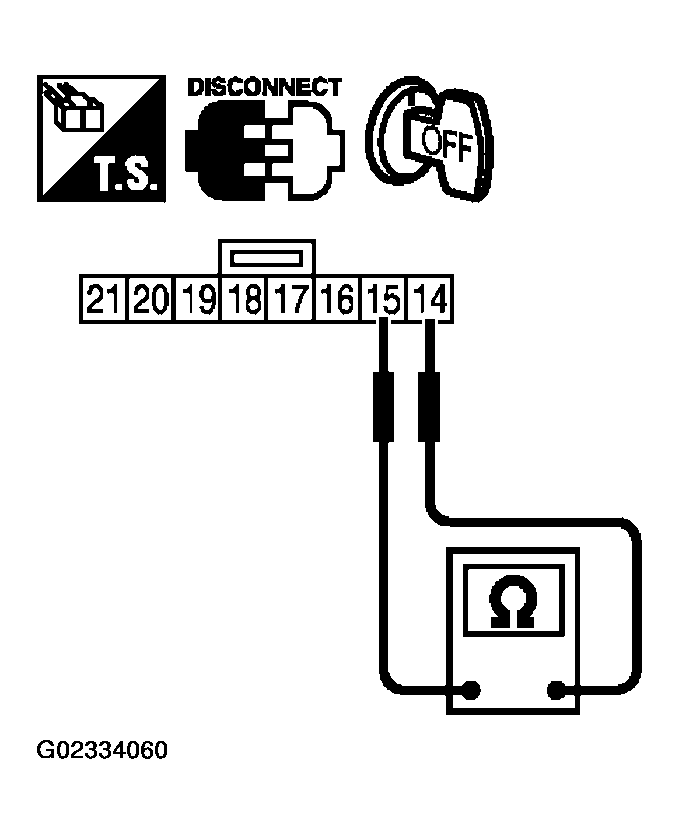

    Fig 2: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 14 & 15
    G02334060Courtesy of NISSAN MOTOR CO., U.S.A.
