On Board Diagnosis Logic: Notes

WARNING: This page is about a different variant/trim than selected.

This self-diagnosis has the one trip detection logic.

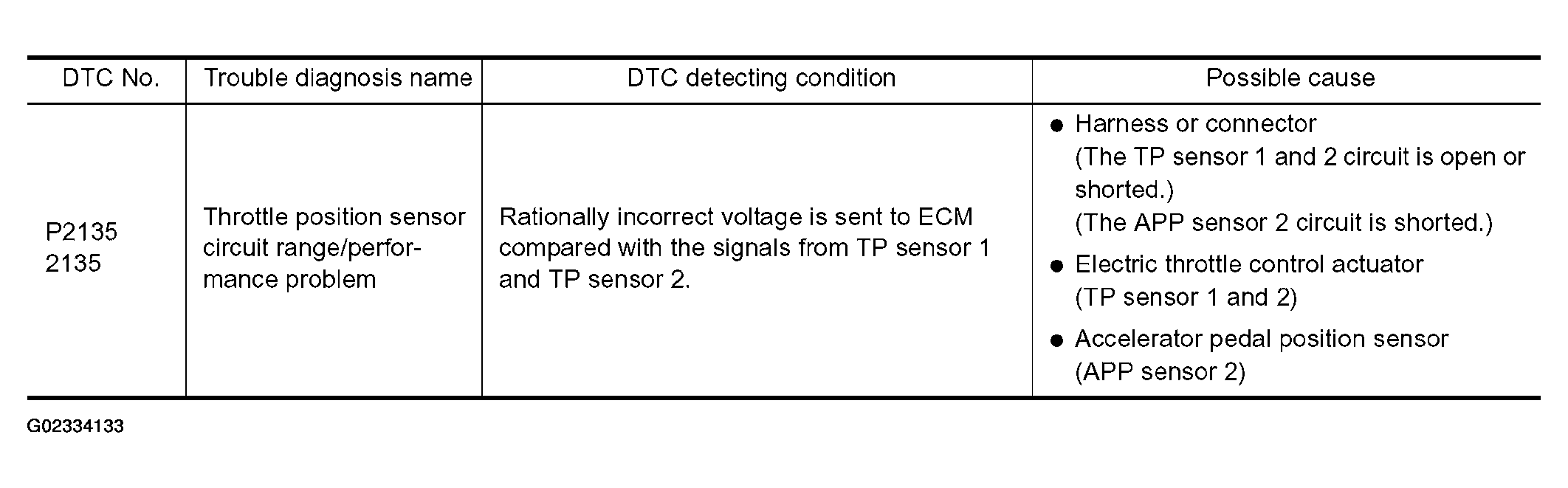

Fig 1: On Board Diagnosis Logic Chart (DTC P2135 TP SENSOR)
G02334133Courtesy of NISSAN MOTOR CO., U.S.A.
