Consult-II Basic Operation Procedure

  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector on vehicle side, and turn the ignition switch ON.

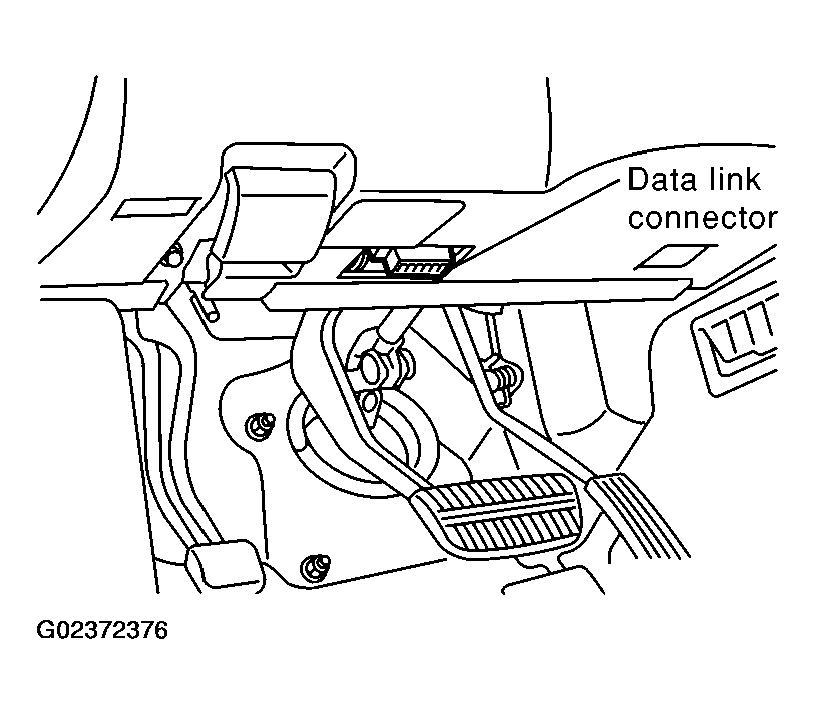

    Fig 1: Identifying Data Link Connector
    G02372376Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

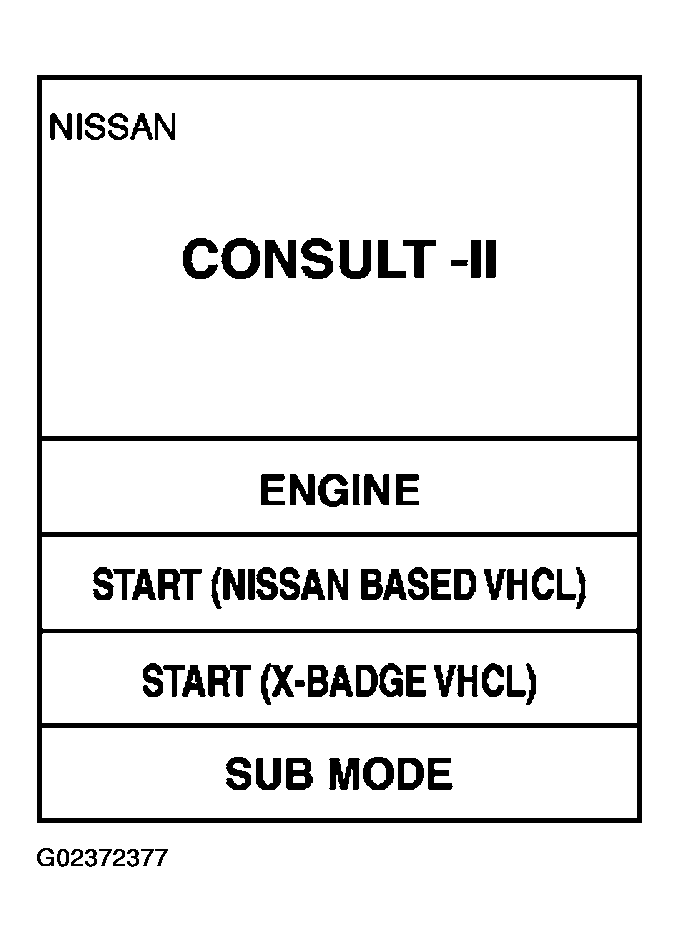

    Fig 2: START - CONSULT II Display
    G02372377Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "IVMS".

    If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

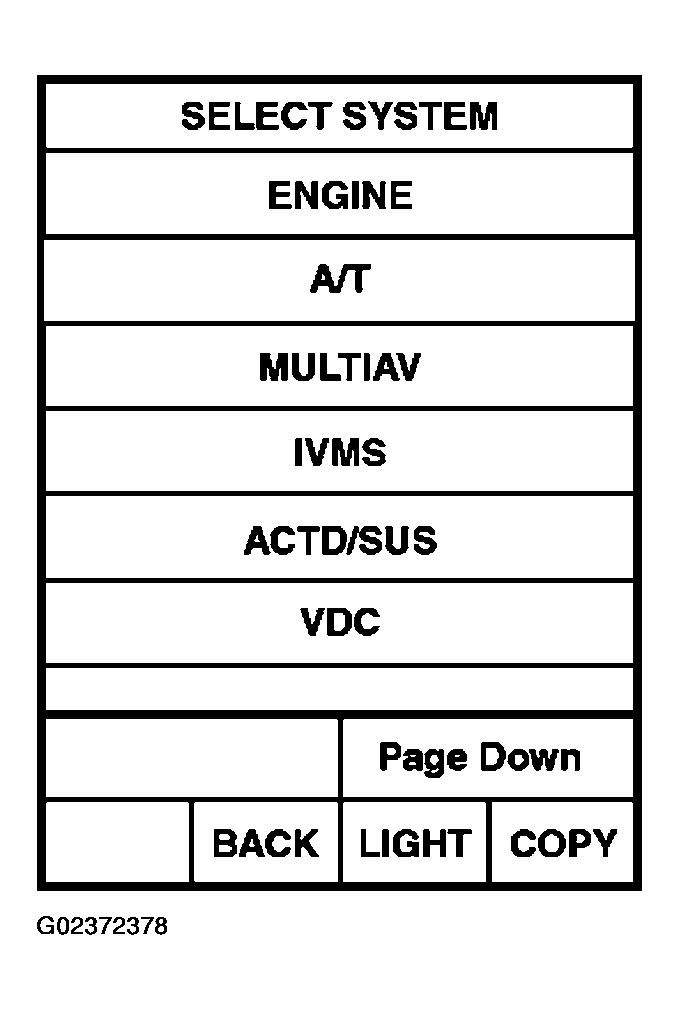

    Fig 3: IVMS - CONSULT II Display
    G02372378Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".

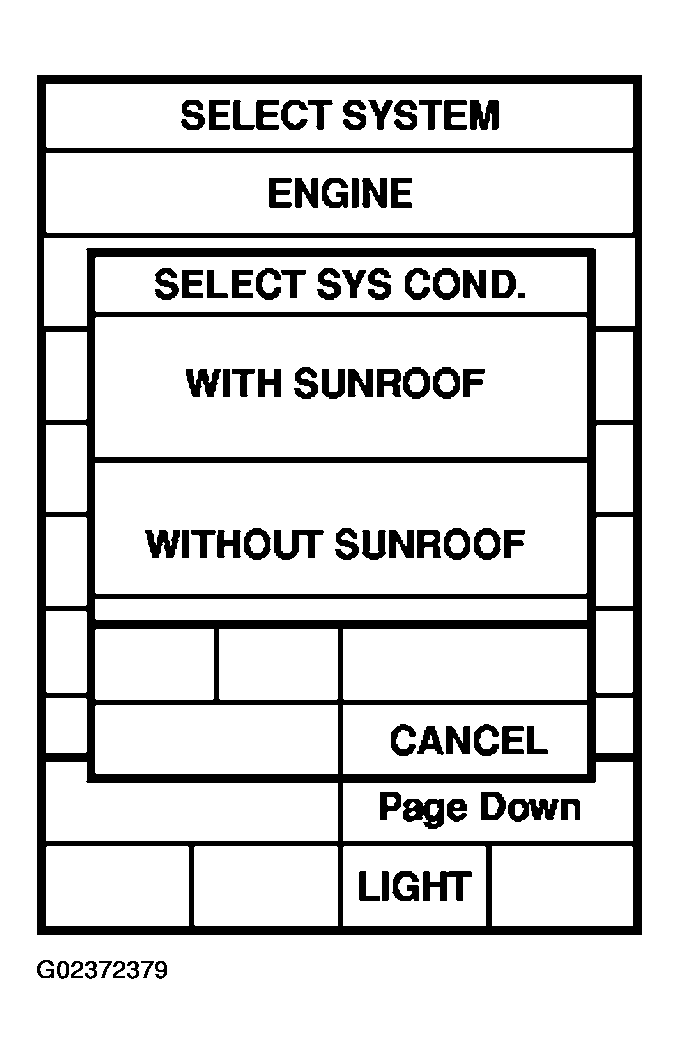

    Fig 4: WITH SUNROOF - CONSULT II Display
    G02372379Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
