Inaccurate Compass Direction

  1. With the display turned on, push the "COMP" switch for 3 seconds, until the zone selection comes up (a number will be displayed in the mirror compass window).
  2. Toggle until correct zone is found and release switch.
  3. The display will show all segments, and return to the normal compass mode within 10 seconds of no switch activity.
  4. If the vehicle changes zone, repeat steps 1 through 3. See map.

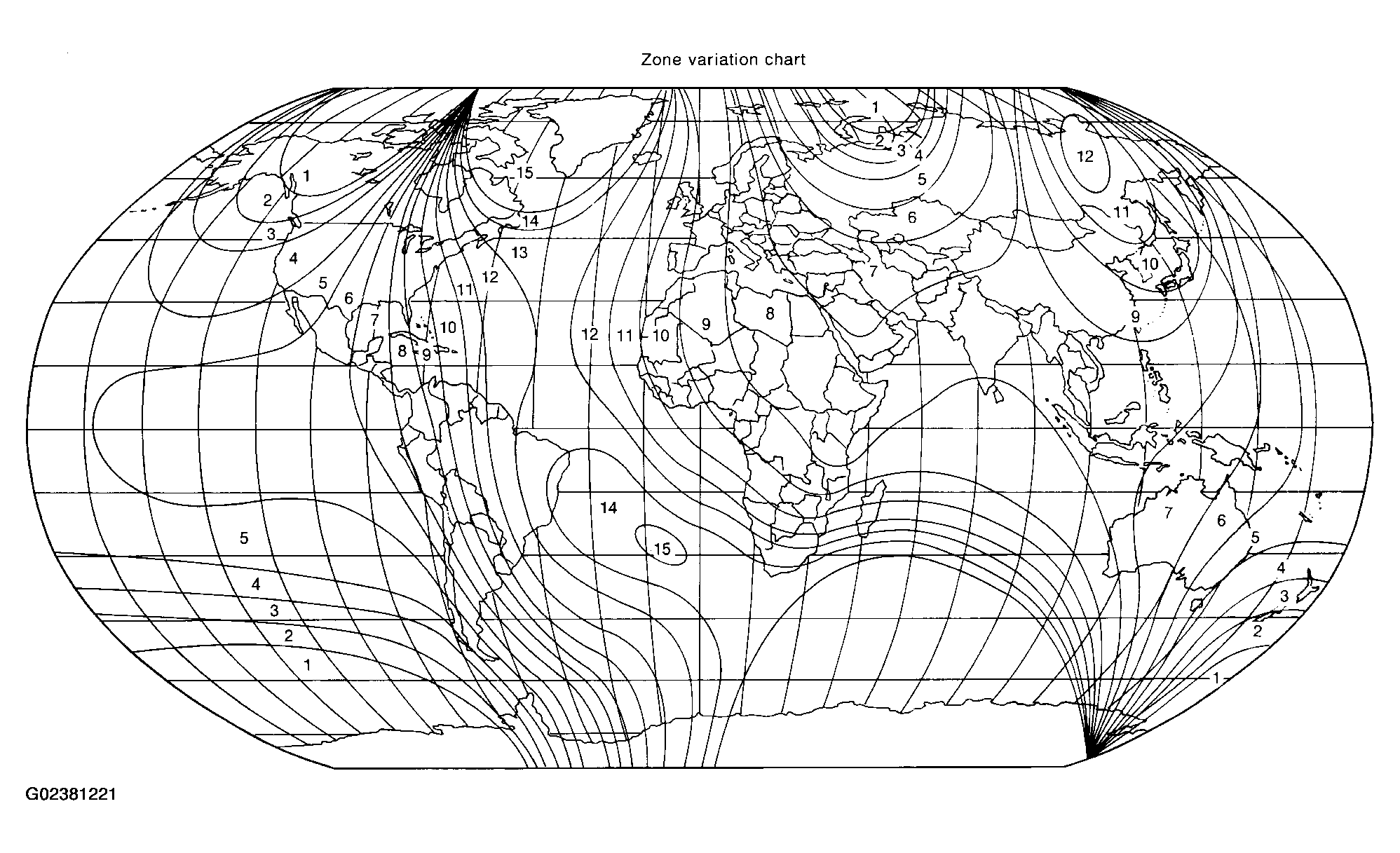

    Fig 1: Identifying Zone Variation Chart
    G02381221Courtesy of NISSAN MOTOR CO., U.S.A.
