CONSULT-II Function: Version

Displays version of each unit connected to the AV control unit.

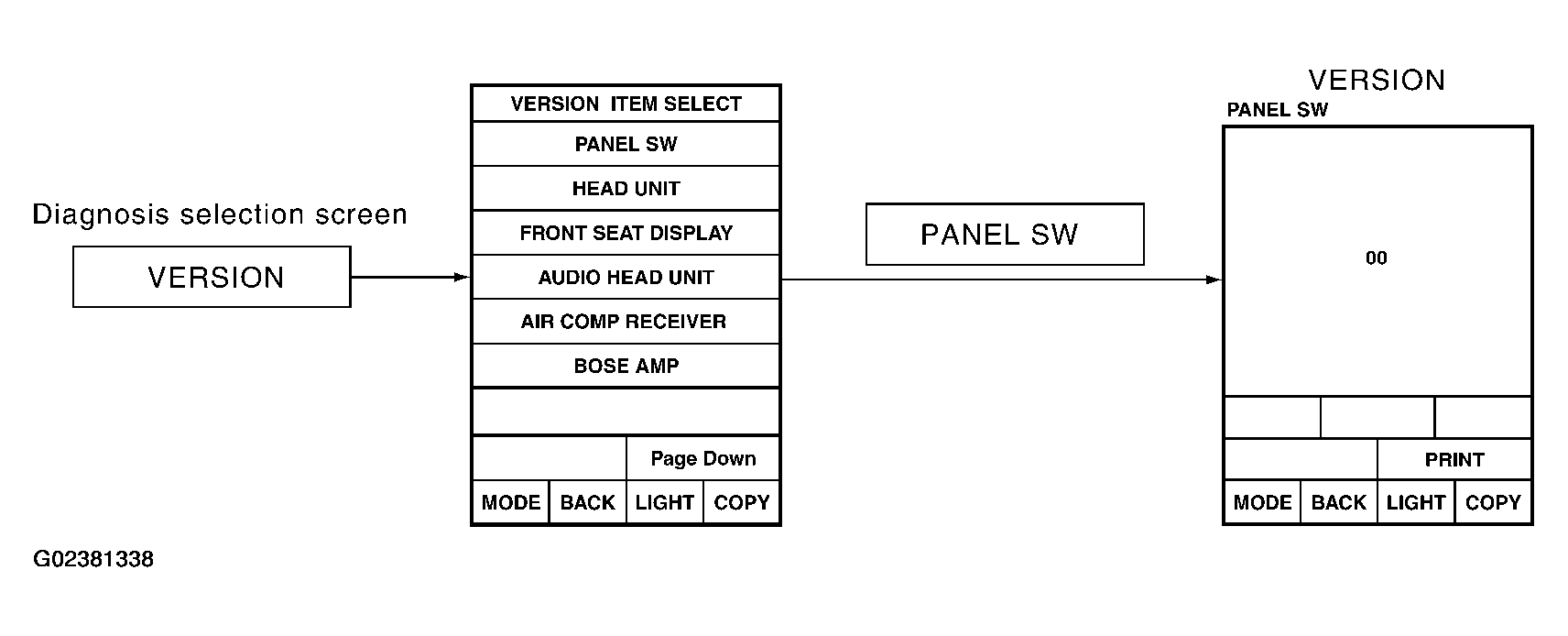

Fig 1: Identifying Version Self-Diag Results Chart
G02381338Courtesy of NISSAN MOTOR CO., U.S.A.
VERSION DISPLAY REFERENCE

Version display Remarks
"PANEL SW" Multifunction switch
"HEAD UNIT" AV control unit
"REAR VIEW CAMERA" -
"FRONT SEAT DISPLAY" Display
"AUDIO HEAD UNIT" -

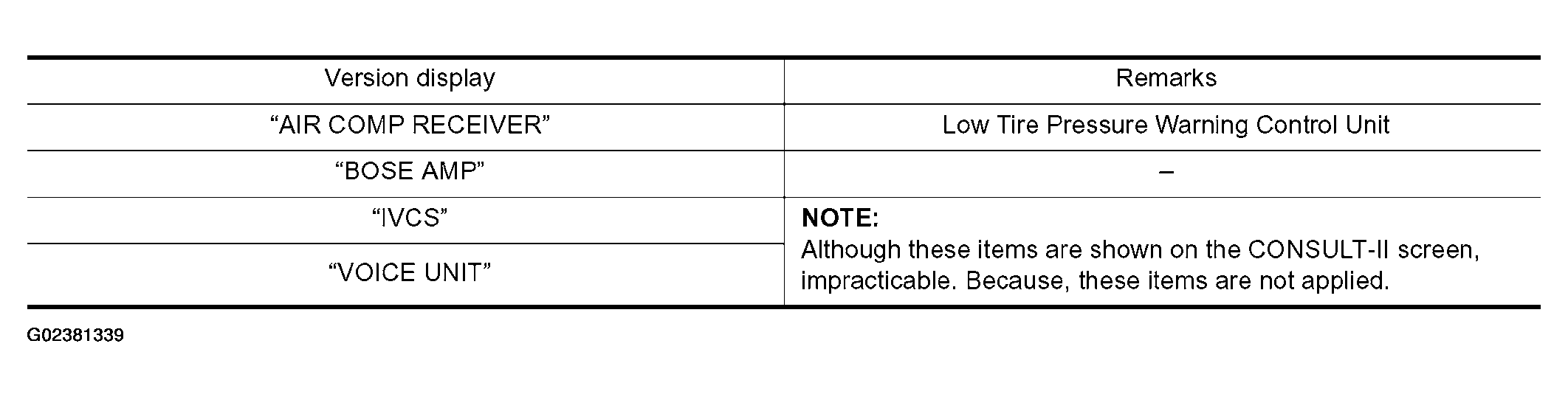

Fig 2: Identifying Version Remarks Chart
G02381339Courtesy of NISSAN MOTOR CO., U.S.A.
