Back-up Control (Engine Brake)

When the select operation is performed during driving and the transmission is shifted down, the line pressure is set according to the vehicle speed.

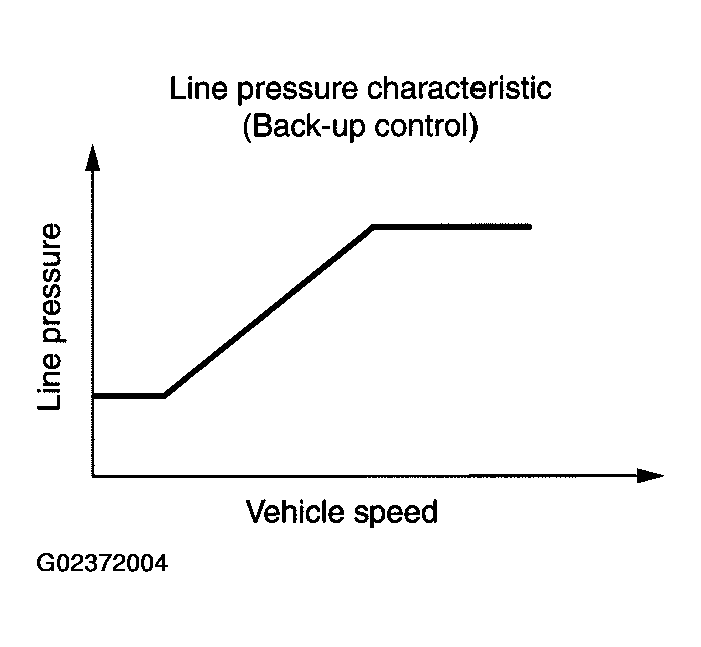

Fig 1: TCM Line Pressure Graph (Back-up Control (Engine Brake)
G02372004Courtesy of NISSAN MOTOR CO., U.S.A.
