Control Device Components

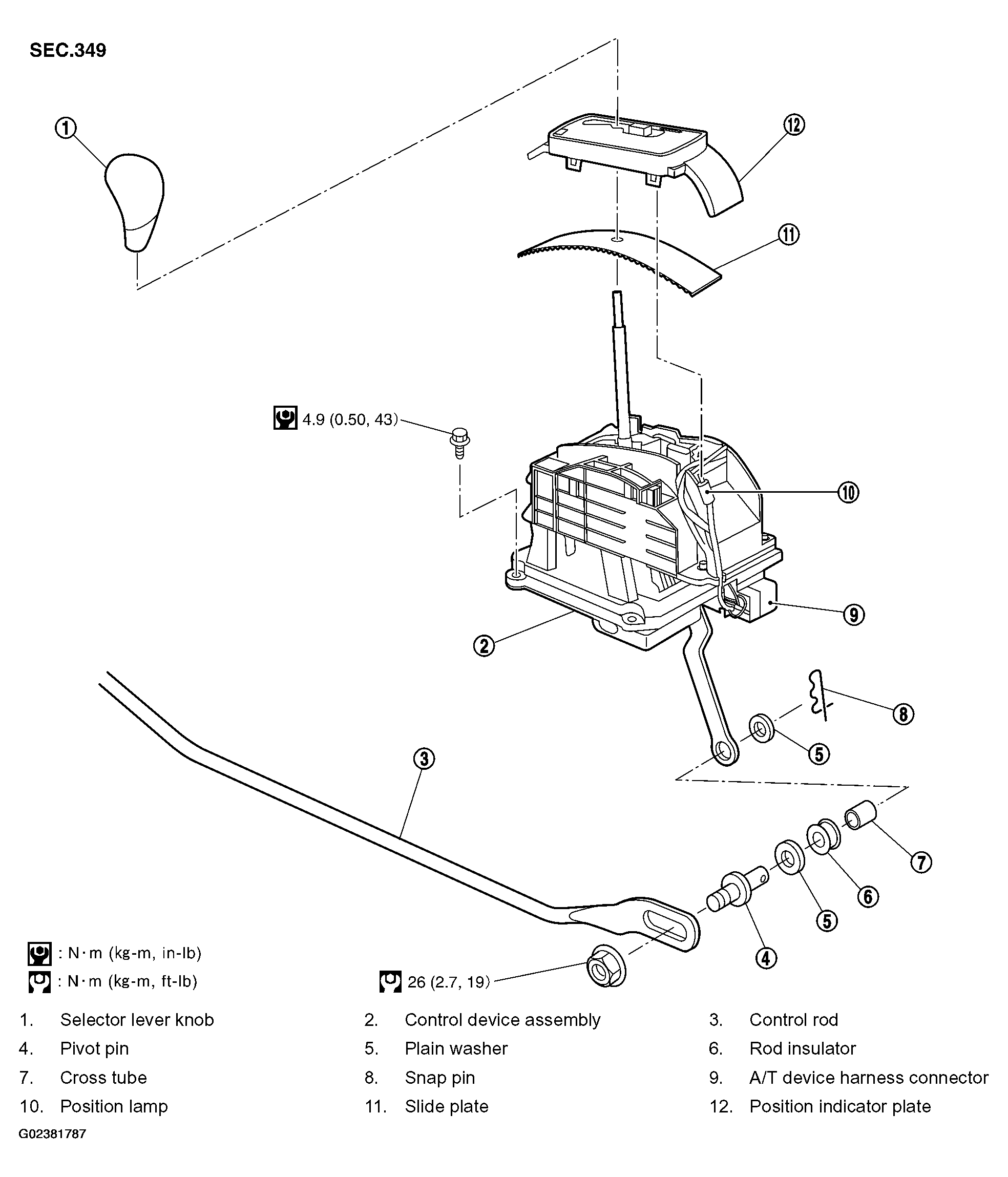

Fig 1: Control Device Replacement Components With Torque Specifications
G02381787Courtesy of NISSAN MOTOR CO., U.S.A.
