Terminals and Reference Values for Driver Seat Control Unit

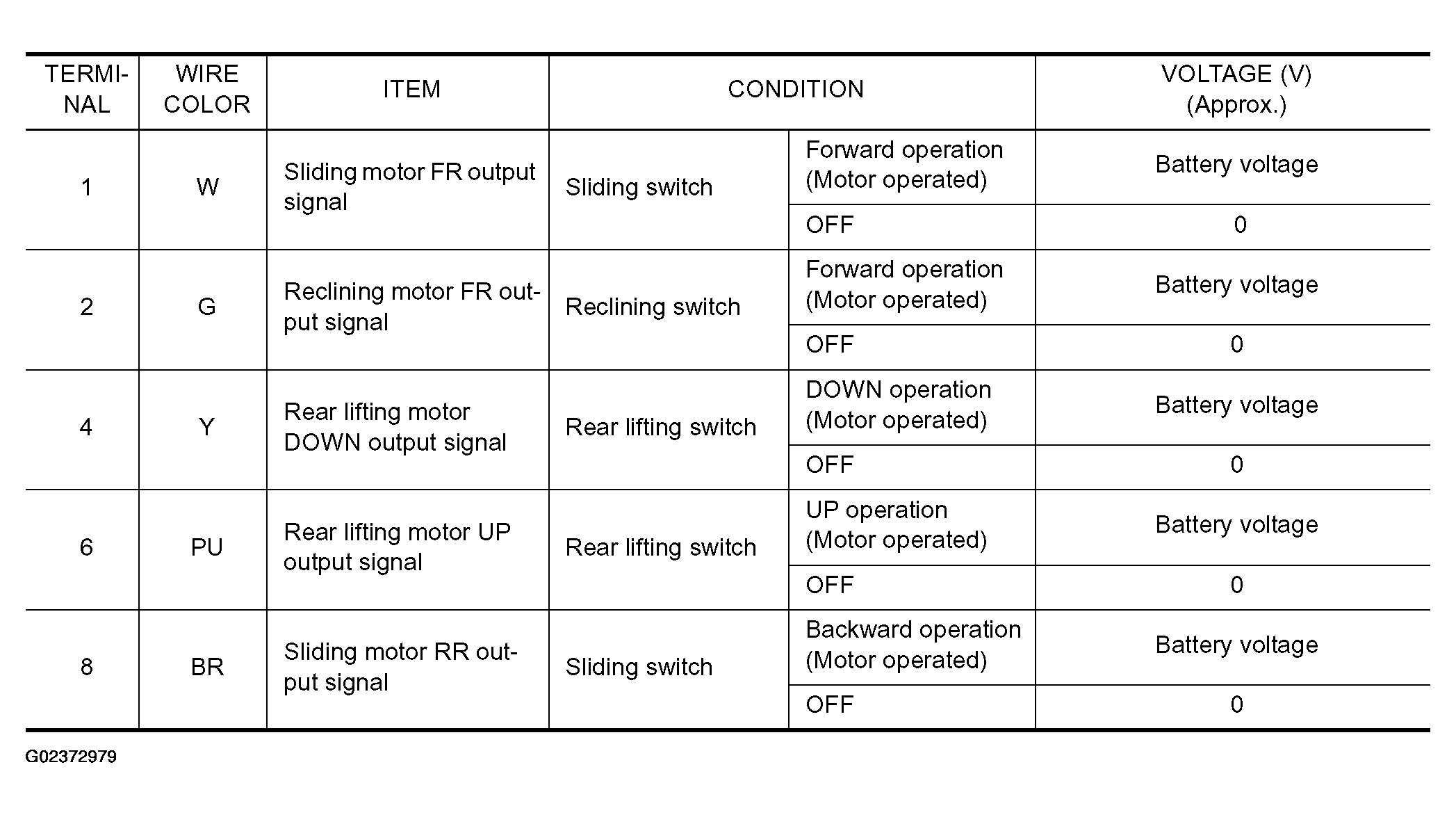

Fig 1: Terminals And Reference Values Chart For Driver Seat Control Unit (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

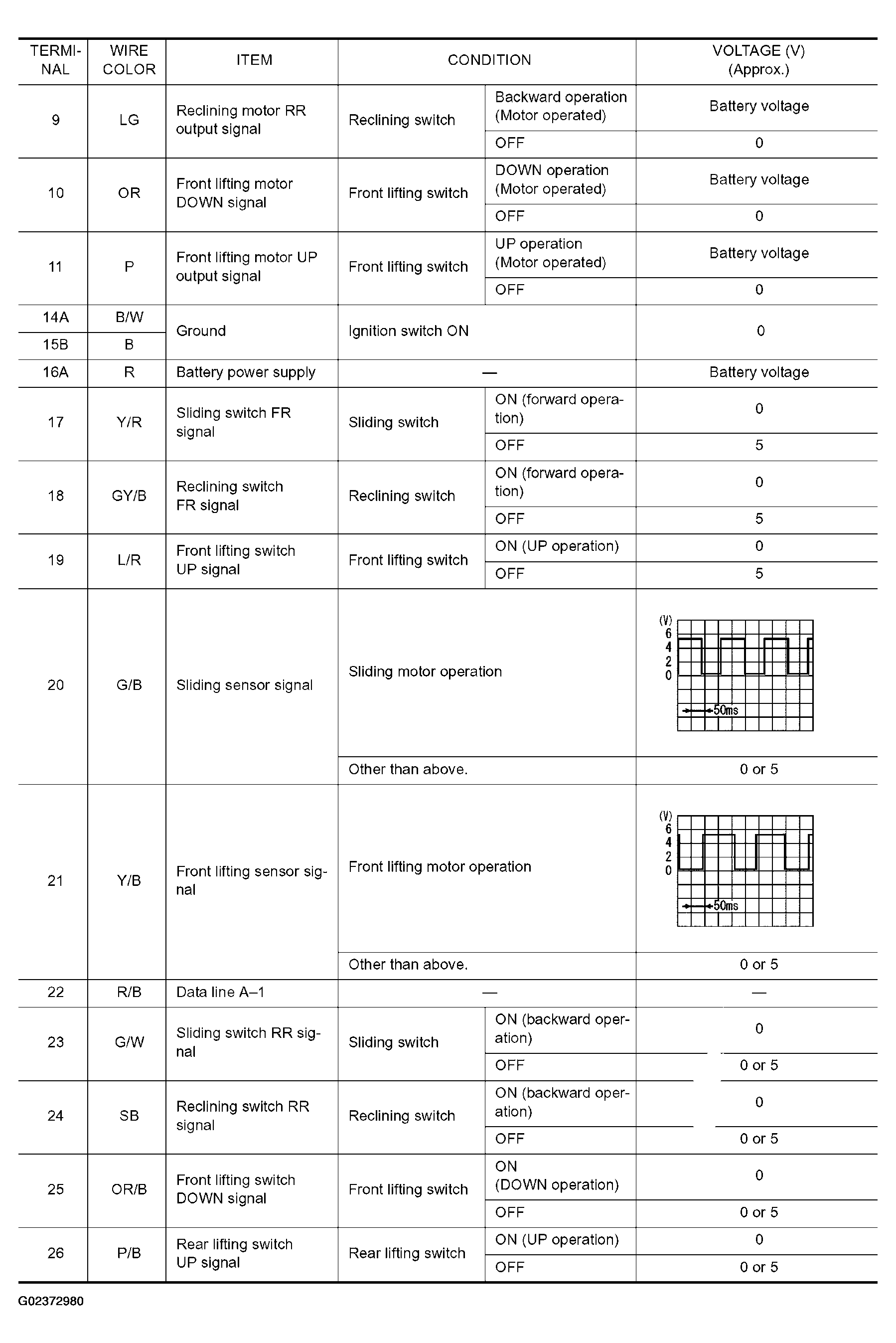

Fig 2: Terminals And Reference Values Chart For Driver Seat Control Unit (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

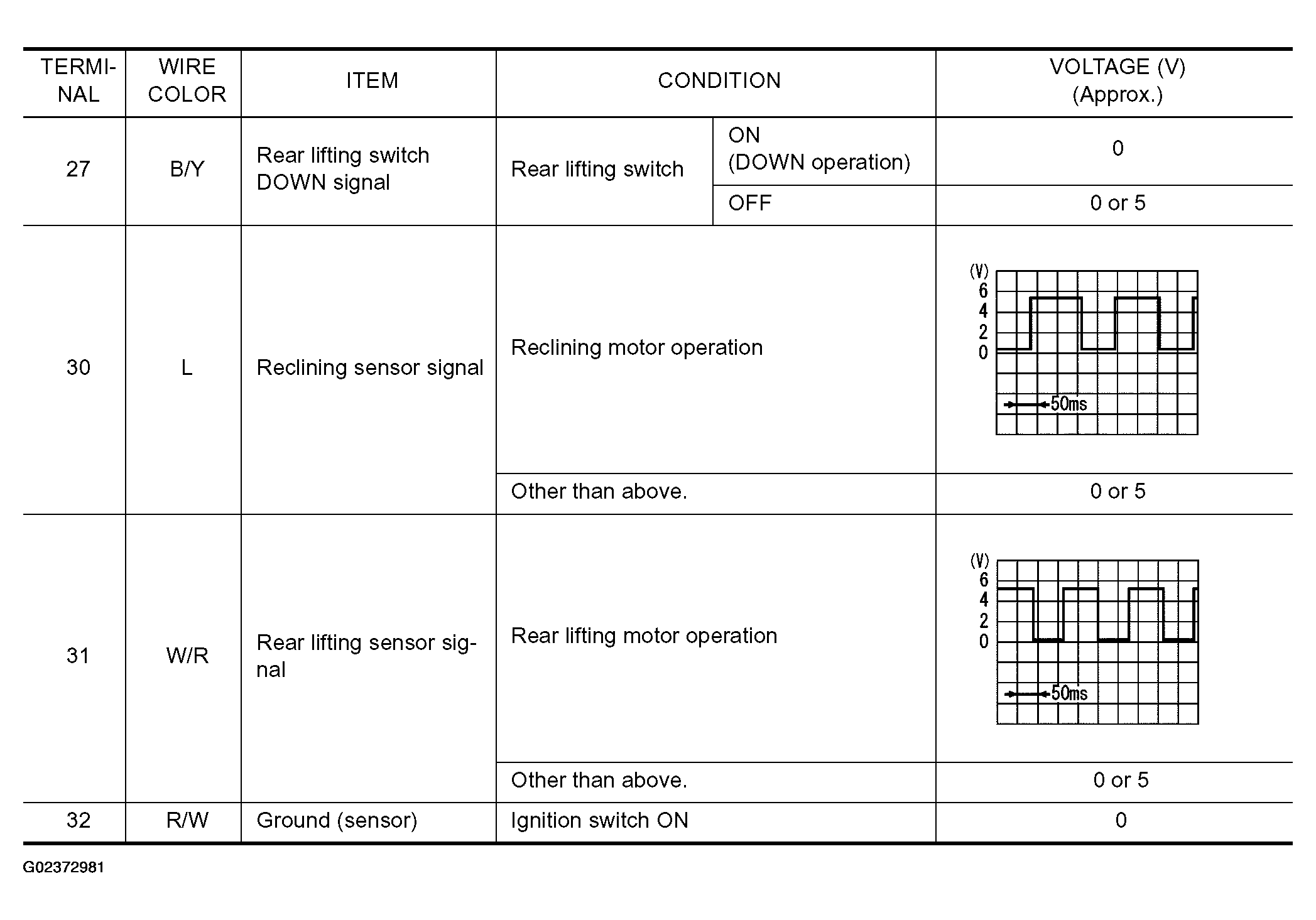

Fig 3: Terminals And Reference Values Chart For Driver Seat Control Unit (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
