Terminal and Reference Value For Climate Controlled Seat Control Unit

Fig 1: Terminal And Reference Value Chart - Climate Controlled Seat Control Unit (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

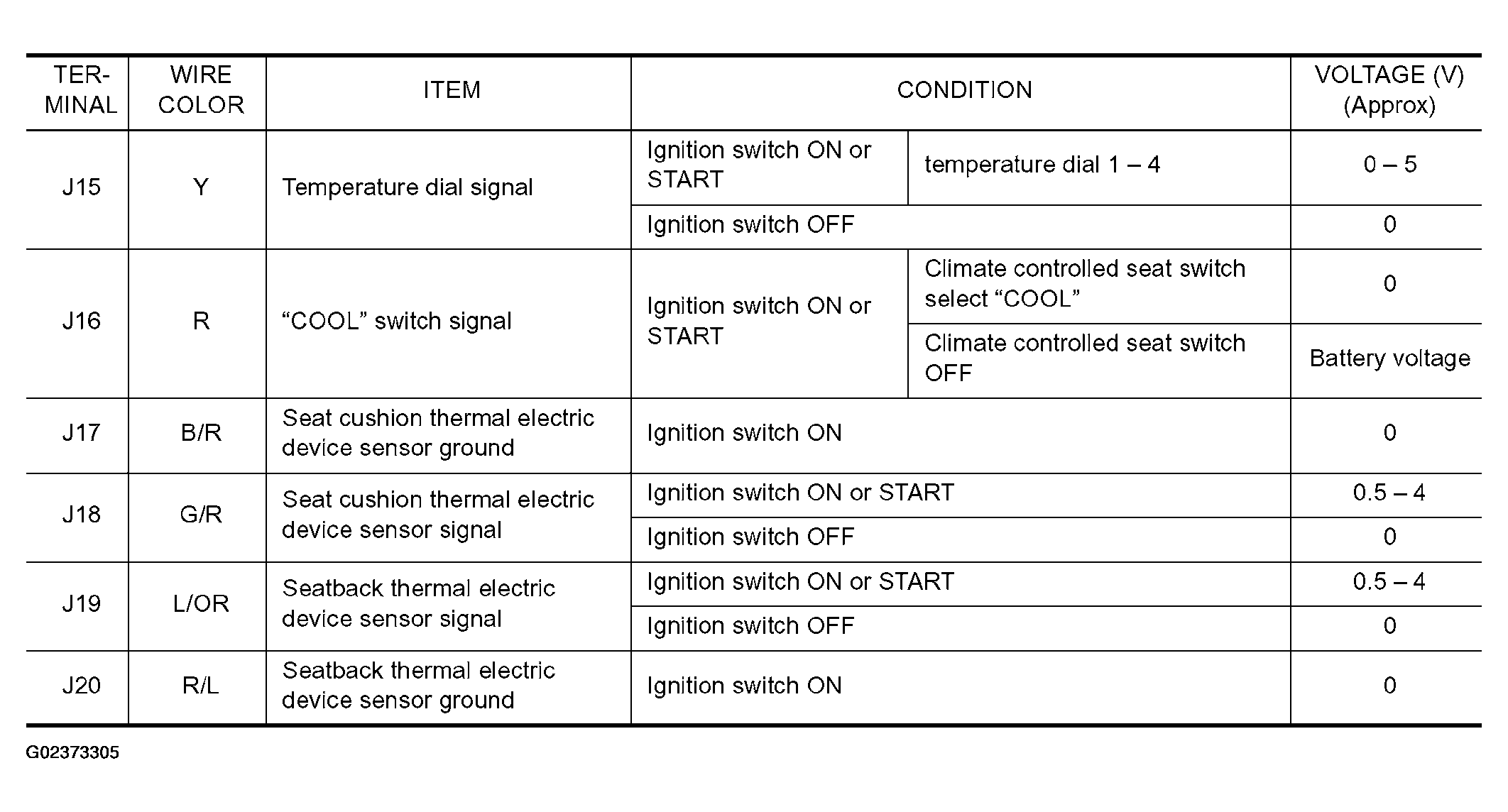

Fig 2: Terminal And Reference Value Chart - Climate Controlled Seat Control Unit (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
