Terminals and reference value for BCM

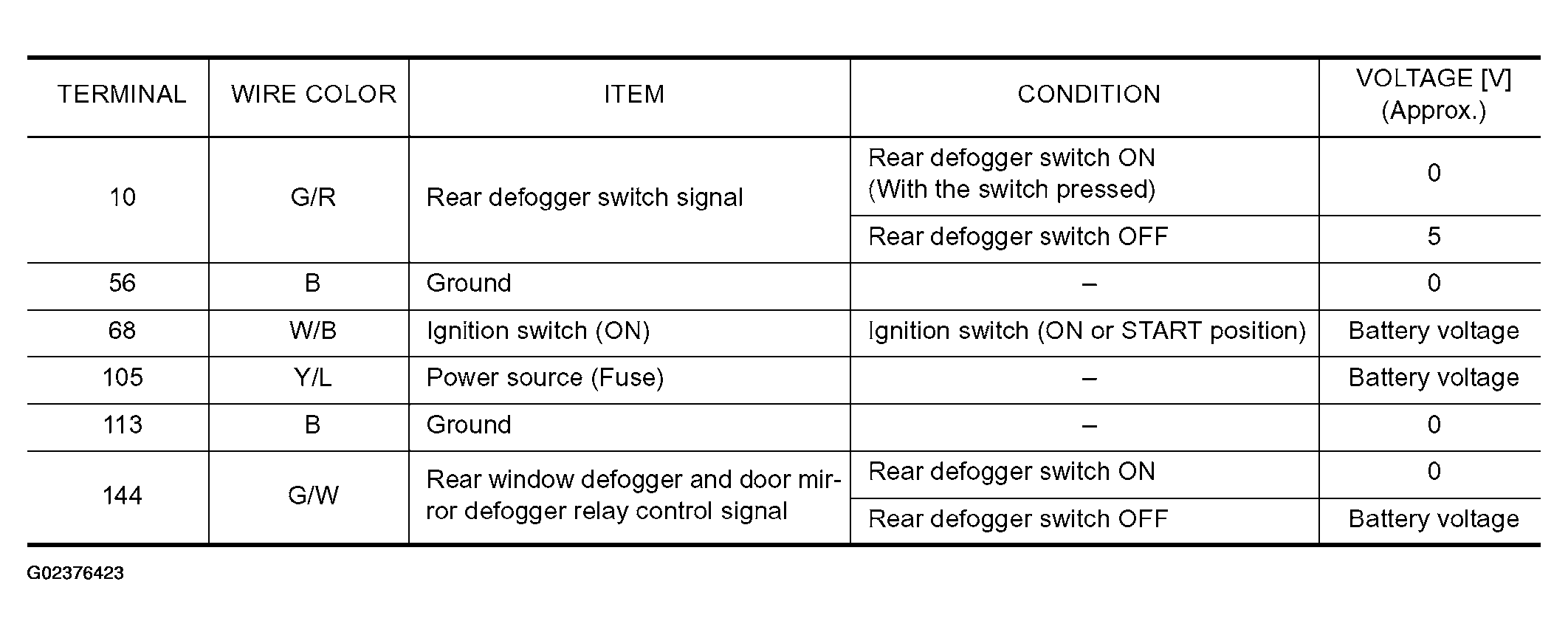

Fig 1: BCM Value Terminals And Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
