ABS Warning Lamp
Touch "ON" and "OFF" on the screen. Check that ABS warning lamp operates as shown in table below.
ABS WARNING LAMP OPERATION
Operation
ON
OFF
ABS WARN LAMP
ON
OFF

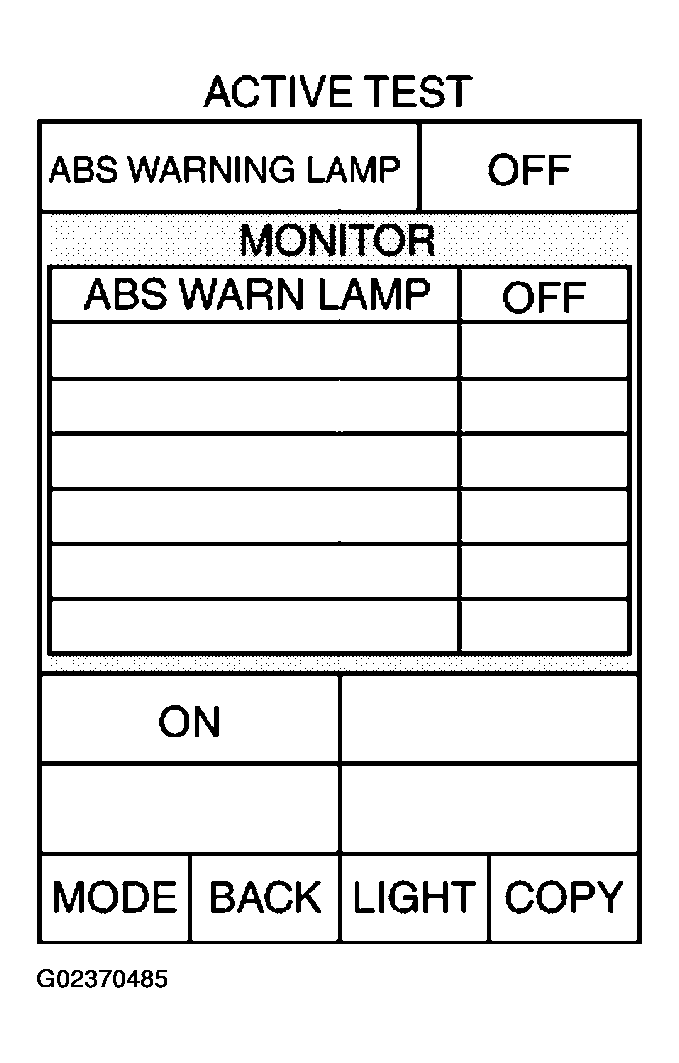

Fig 1: Consult II Display - ABS Warning Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
