Standards By Consult-II

CAUTION: Items displayed are data calculated by control unit and may indicate normal operation even if output circuit (harness) is open or shorted.

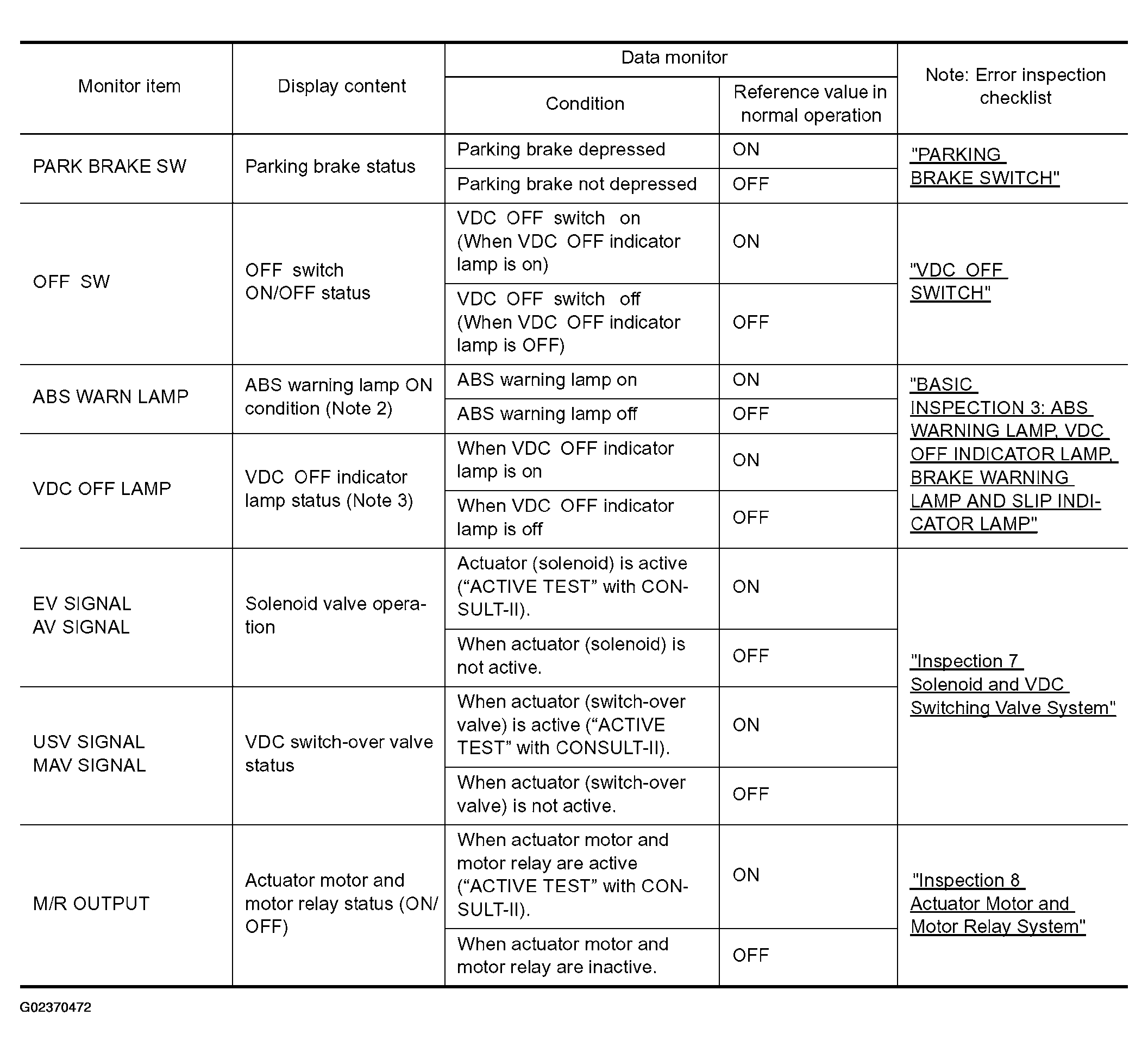

Fig 1: Control Unit Input/Output Signal Standard Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

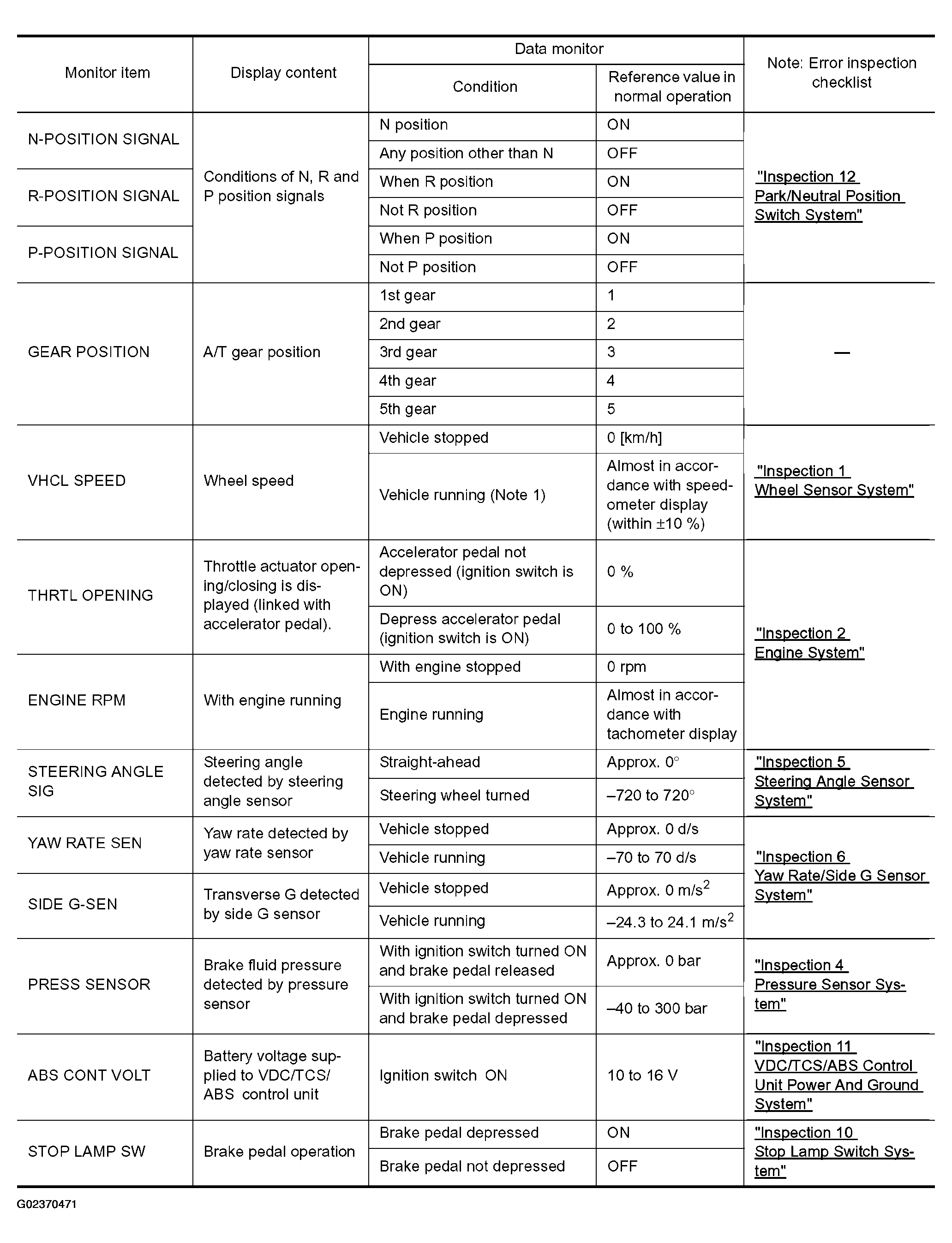

Fig 2: Control Unit Input/Output Signal Standard Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: 1: Confirm tire pressure is normal.

NOTE: 2: ON/OFF timing of ABS warning lamp
ON: When ignition switch is turned ON, or when a malfunction is detected.
OFF: After ignition switch is turned ON (when system is in normal operation).

NOTE: 3: ON/OFF timing of VDC OFF indicator lamp
ON: When ignition switch is turned ON, or when a malfunction is detected and VDC OFF switch is ON.
OFF: After ignition switch is turned ON (when system is in normal operation.) And when VDC OFF switch is OFF.
