VDC Relay Box: Notes

Turn ignition switch is OFF and disconnect VDC relay box connector. Check continuity, resistance value, and insulation between any pair of terminals in VDC relay box.

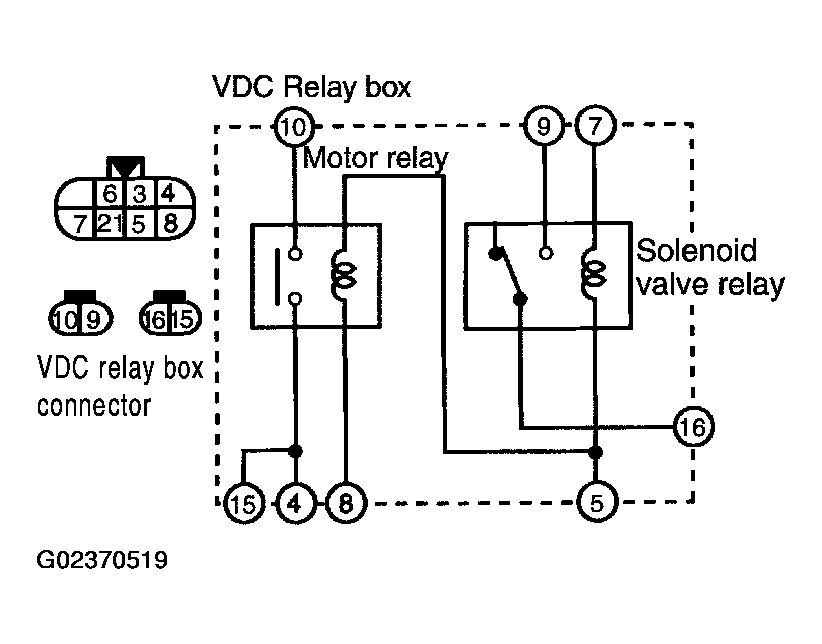

Fig 1: VDC Relay Box Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
