Removal and Installation: Components

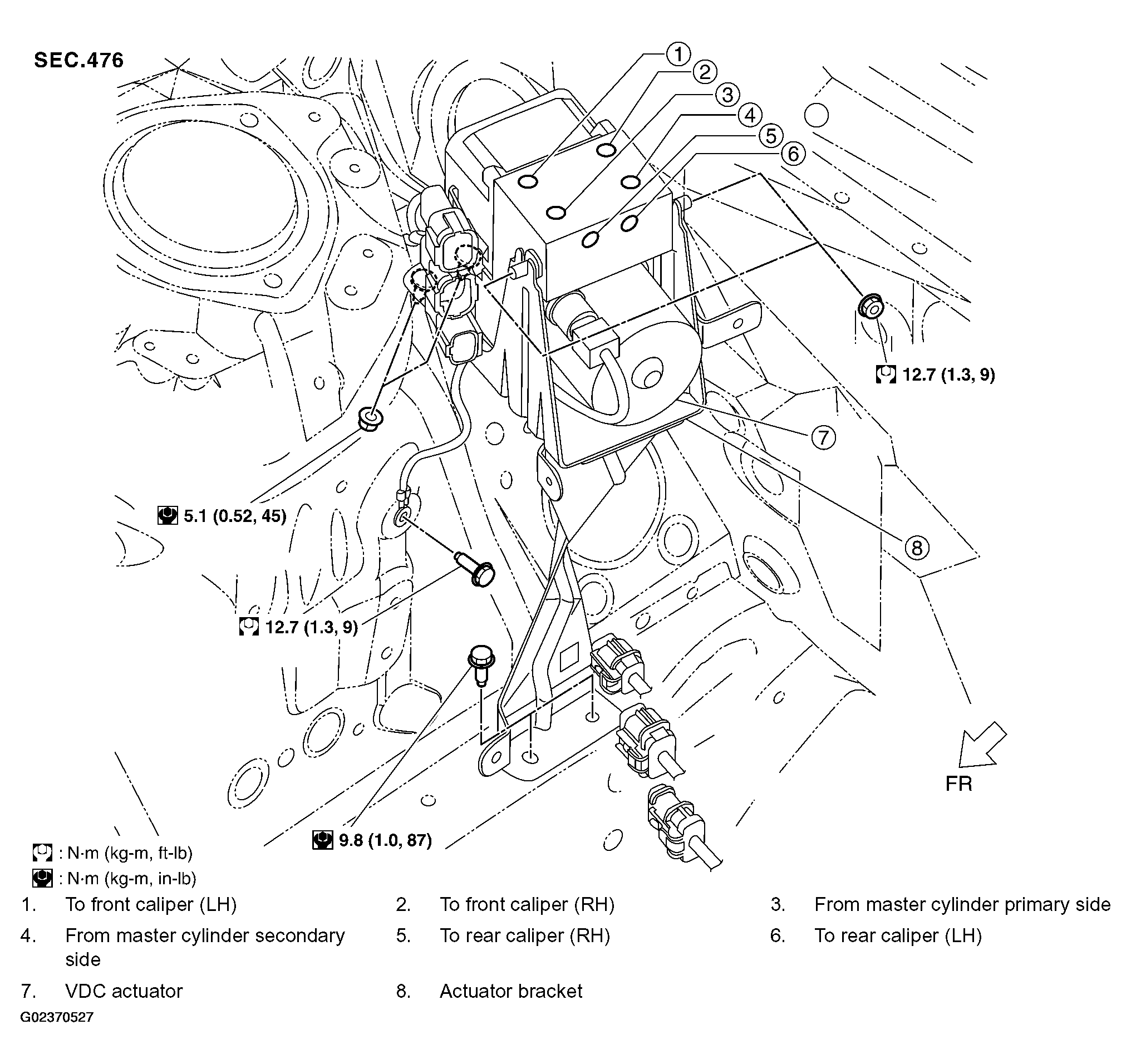

Fig 1: VDC/TCS/ABS Actuator Replacement Components With Torque Specifications
G02370527Courtesy of NISSAN MOTOR CO., U.S.A.
