Removal and Installation: Removal

  1. Remove instrument lower cover. Refer to "REMOVAL ".
  2. Remove instrument finisher. Refer to "REMOVAL ".
  3. Remove grove box assembly. Refer to "REMOVAL ".
  4. Remove grove box cover. Refer to "REMOVAL "
  5. Remove instrument panel bracket.
  6. Remove ECM. Refer to "ECM TERMINALS AND REFERENCE VALUE ".
  7. Remove VDC/TCS/ABS control unit.

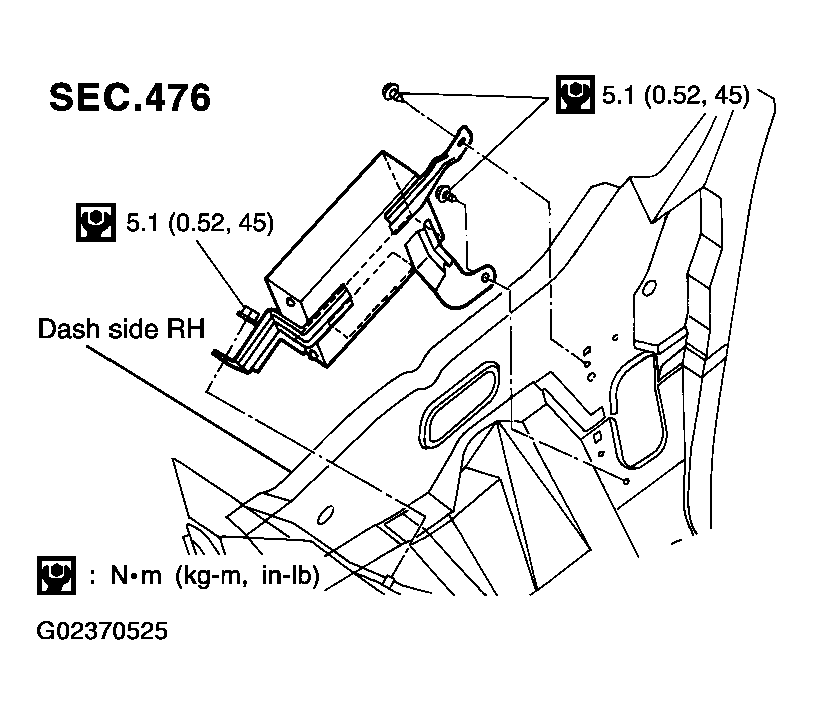

    Fig 1: Removing/Installing VDC/TCS/ABS Control Unit With Torque Specifications
    G02370525Courtesy of NISSAN MOTOR CO., U.S.A.
