Removal and Installation: Notes

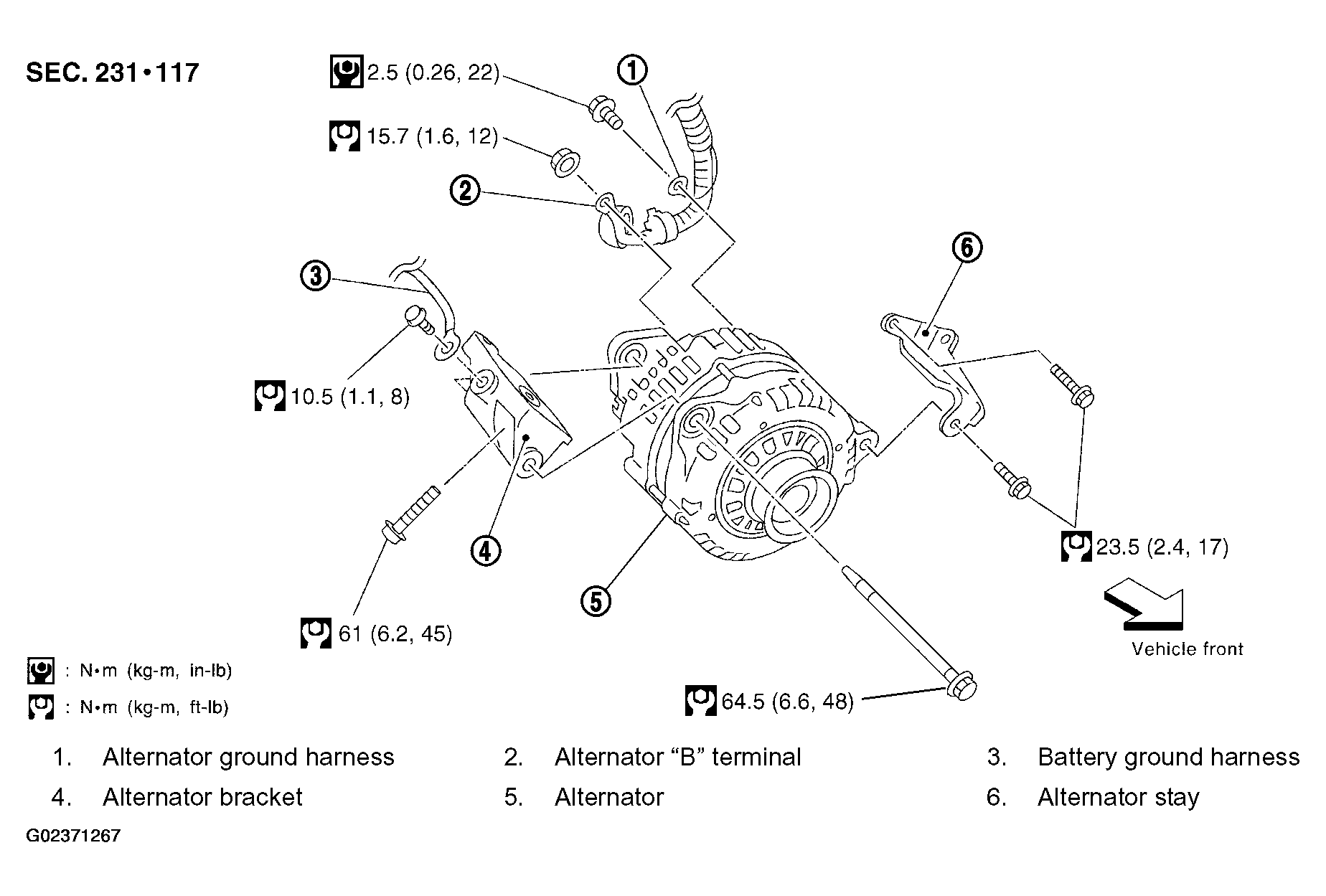

Fig 1: Alternator Replacement Components With Torque Specifications
G02371267Courtesy of NISSAN MOTOR CO., U.S.A.
